eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2025
The bike was released 1 years ago
Screen
Shimano SC-EM800
Lights Included
Yes
Weight (inc battery): 25.2 kg
The website average for electric bikes is 24.55 kg. This electric bike is 0.64 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano EP 801 (EP 8 series)
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
600 wh
Claimed Max Range
55 miles (88.5 km)
Charge Time
5h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS 150–160 cm (4'11"–5'3") | S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
FSA E-MTB i 30 Alloy wheelset (tubeless-ready)
Wheelset Size
29 inch
Tires
Maxxis Assegai
Frame Info
Frame Material
Carbon Fiber
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
Shimano XT Di2 M8150 / LG700 with FSA crank
Drivechain type
Chain drive
Shifters
Shimano XT Di 2 M 8150-11 electric shifter
Amount of gears
11 Gears
Rear Derailleur
Shimano XT Di 2 RD-M 8150 Linkglide
Front Derailleur
None
Cassette
Shimano LG 700 11-50 teeth
Cranks
Shimano FC-E 8150 (165 mm) with an FSA 1 x Steel 36 T chainring
Chain
Shimano CN-LG 500
Bottom Bracket
Integrated as part of the Shimano EP 801 motor system
Brakes
Brakes
Shimano XT
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
220 mm front / 203 mm rear
Shifters
Shimano XT Di 2 M 8150-11 electric shifter
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

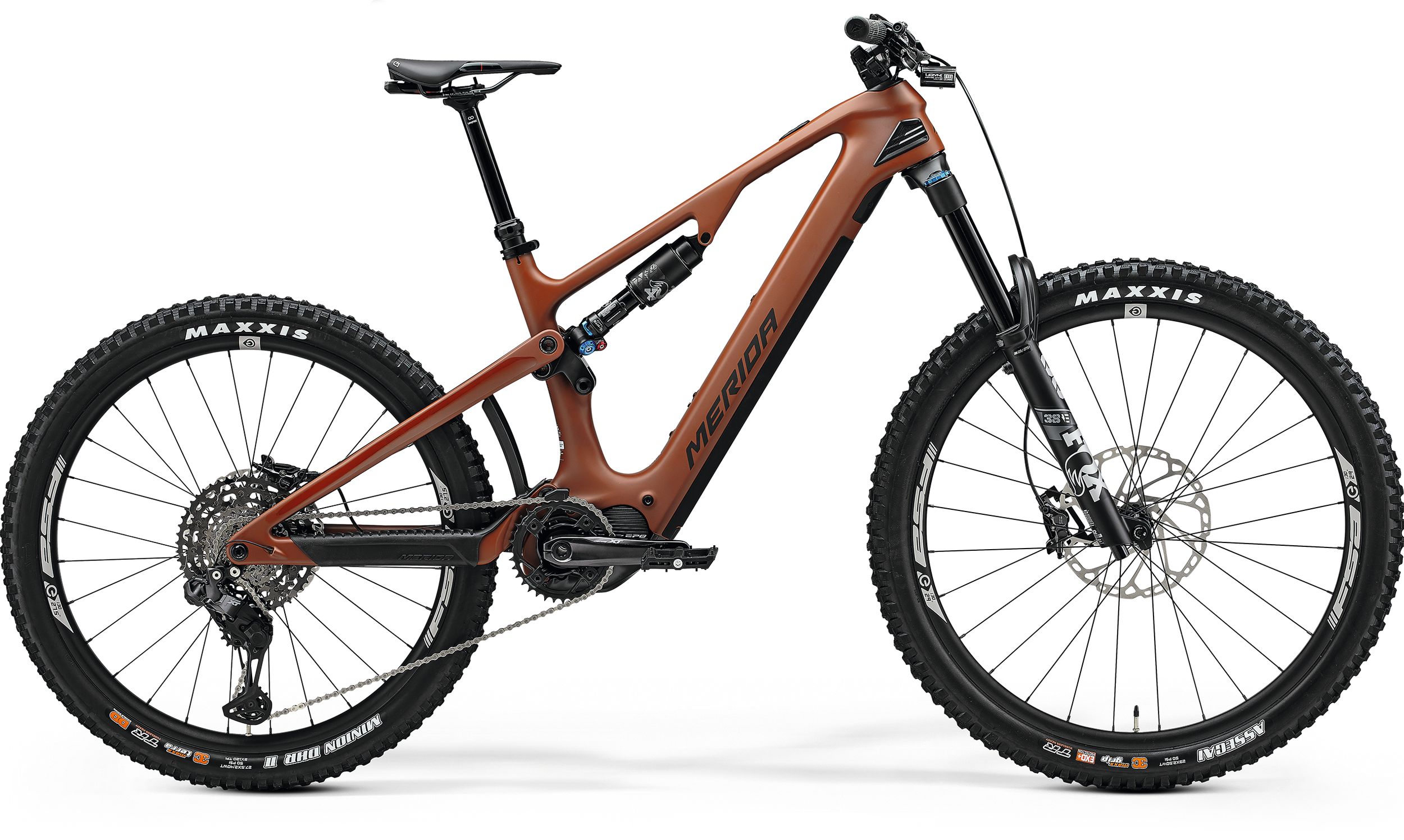

The latest addition to the eONE-SIXTY CF range takes the proven carbon fibre chassis and suspension configuration and combines it with the latest Auto and Free Shift technology thanks to Shimano's Di2 XT drivetrain. The finely tuned geometry offers maximum control on the way up and down, the EP801 drive unit gives the 8000 plenty of grunt and Shimano's electornic shifting technologies let the rider concentrate on what is important - the ride. Lig ... Read More
