eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
Shimano SC-EN600
Lights Included
Yes
Weight (inc battery): 26 kg
The website average for electric bikes is 24.55 kg. This electric bike is 1.44 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano Steps EP 801 (DU-EP 801)
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
750 wh
Claimed Max Range
70 miles (112.7 km)
Charge Time
6h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS 150–160 cm (4'11"–5'3") | S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Expert TR II rims (28 mm inner width, aluminium, tubeless-ready). Hubs: Novatec SL-ELITE (front) and Novatec SL-Team (rear) with Merida Expert TR axles.
Wheelset Size
29 inch
Tires
Maxxis Rekon
Frame Info
Frame Material
Carbon Fiber
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
SRAM NX Eagle / PG-1210 with FSA crank
Drivechain type
Chain drive
Shifters
SRAM NX Eagle Single Click (right) paired with a Limotec RM 10 dropper post lever (left)
Amount of gears
12 Gears
Rear Derailleur
SRAM NX Eagle
Front Derailleur
None
Cassette
SRAM PG-1210 Eagle; 10-50 teeth
Cranks
Shimano FC-EM 600 (165 mm length for all sizes) with an FSA 1 x Steel 36 T chainring
Chain
SRAM SX Eagle
Bottom Bracket
Integrated as part of the Shimano Steps motor system
Brakes
Brakes
Sram DB8
Brake Type: Hydraulic Disc Brakes
Hydraulic operated discs brakes (Very good)
Brake Rotors
SRAM Center Line 200 mm
Shifters
SRAM NX Eagle Single Click (right) paired with a Limotec RM 10 dropper post lever (left)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

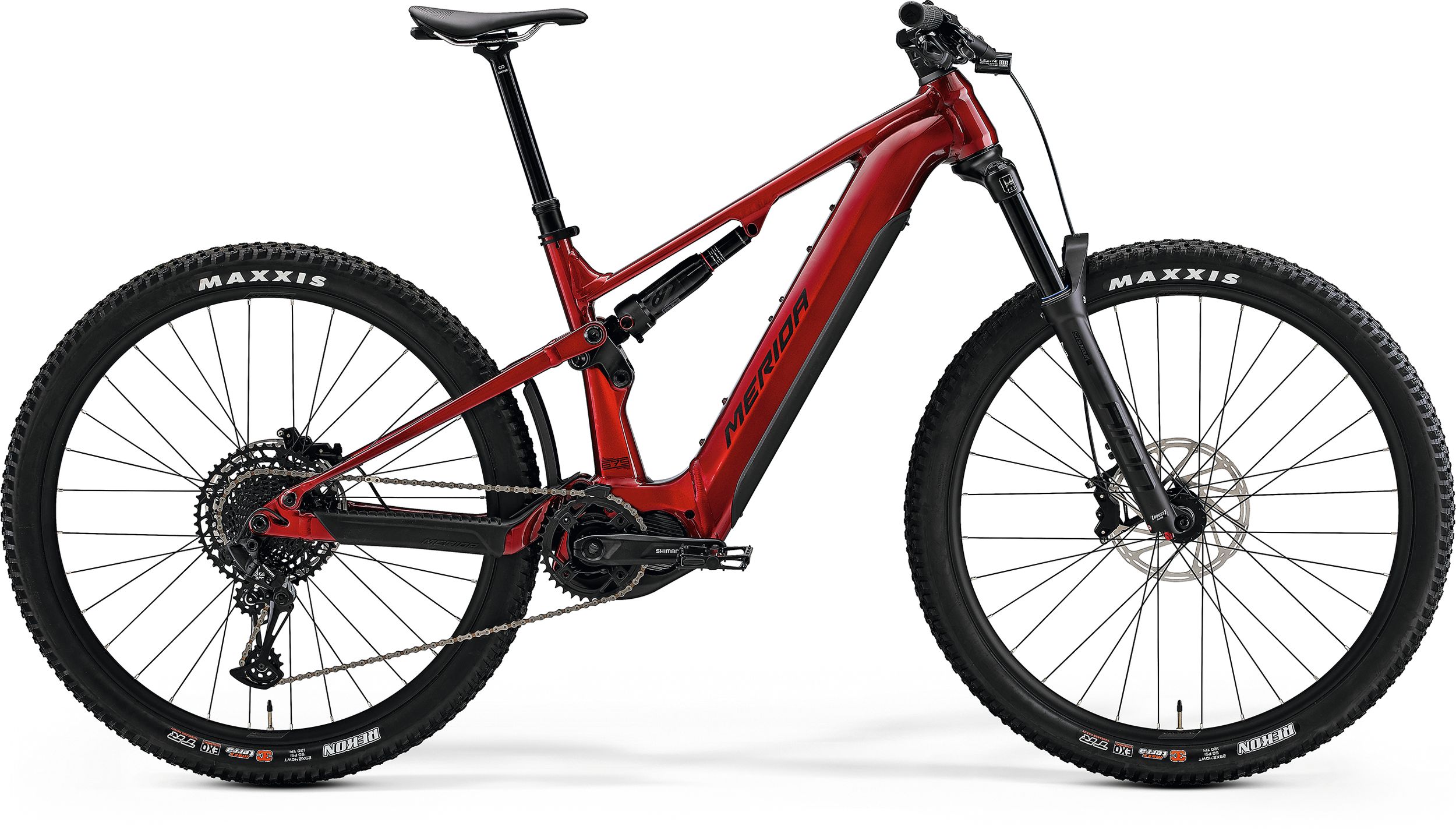

Our long-range trail machine. The eONE-FORTY 675 combines our tough aluminium frame with a 750 Wh user removable battery to give you a huge assisted range, which can be boosted further with our optional 360 Wh range extender. Thanks to the combination of our award-winning, low-maintenance suspension platform and the smooth Suntour Aion fork and RockShox rear shock, it's ready to slice through singletrack on repeat, while the 12-speed SRAM NX Eagl ... Read More
