eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2026
The bike was released this year
Screen
Bosch Purion 400
Lights Included
Yes
Weight (inc battery): 27.6 kg
The website average for electric bikes is 24.55 kg. This electric bike is 3.04 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Bosch Performance Line CX (Gen 5)
Motor Power
600 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
800 wh
Claimed Max Range
75 miles (120.7 km)
Charge Time
5h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS 147–155 cm (4'10"–5'1") | S 155–165 cm (5'1"–5'5") | M 165–175 cm (5'5"–5'9") | L 175–186 cm (5'9"–6'1") | XL 186–197 cm (6'1"–6'5")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Expert TR II rims (tubeless ready) with Shimano XT hubs
Wheelset Size
29 inch
Tires
Maxxis Assegai
Frame Info
Frame Material
Aluminium
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
SRAM Eagle 70 Transmission / XS-1270 with SRAM S1000 crank
Drivechain type
Chain drive
Shifters
SRAM AXS Pod (Electronic)
Amount of gears
12 Gears
Rear Derailleur
SRAM S 1000 Eagle Transmission
Front Derailleur
None
Cassette
SRAM S 1000 Eagle Transmission, 10-52 Tooth, 12-speed
Cranks
FSA 1 x 6.5" for Bosch (typically 160 mm or 165 mm)
Chain
SRAM S 1000 Eagle Transmission Flattop
Bottom Bracket
Part of the motor assembly (Bosch Performance Line CX Gen 5)
Brakes
Brakes
Sram Maven Base
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
220 mm front / 200 mm rear
Shifters
SRAM AXS Pod (Electronic)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

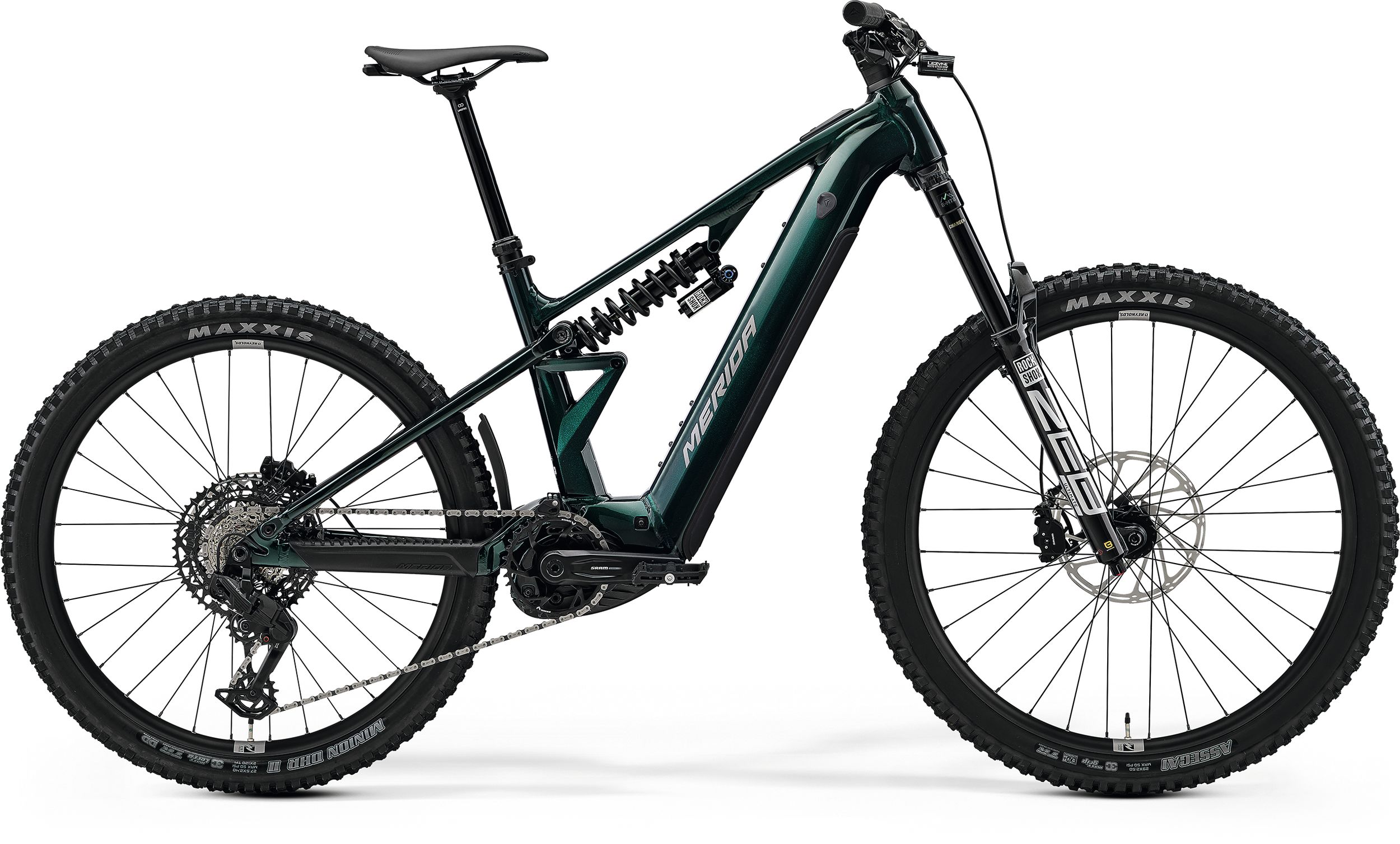

This one goes up to 11. We've made our hard-hitting eONE-EIGHTY even more capable by speccing a coil-sprung rear shock and kit that prioritises suspension and stopping performance over the parts that break or wear out. That means the flawless performance of a RockShox Zeb Ultimate fork and Vivid Coil Ultimate rear shock kicking out 180 mm of travel countered by the relentless power of SRAM's Maven Base disc brakes. Add in a huge 800 Wh battery po ... Read More
