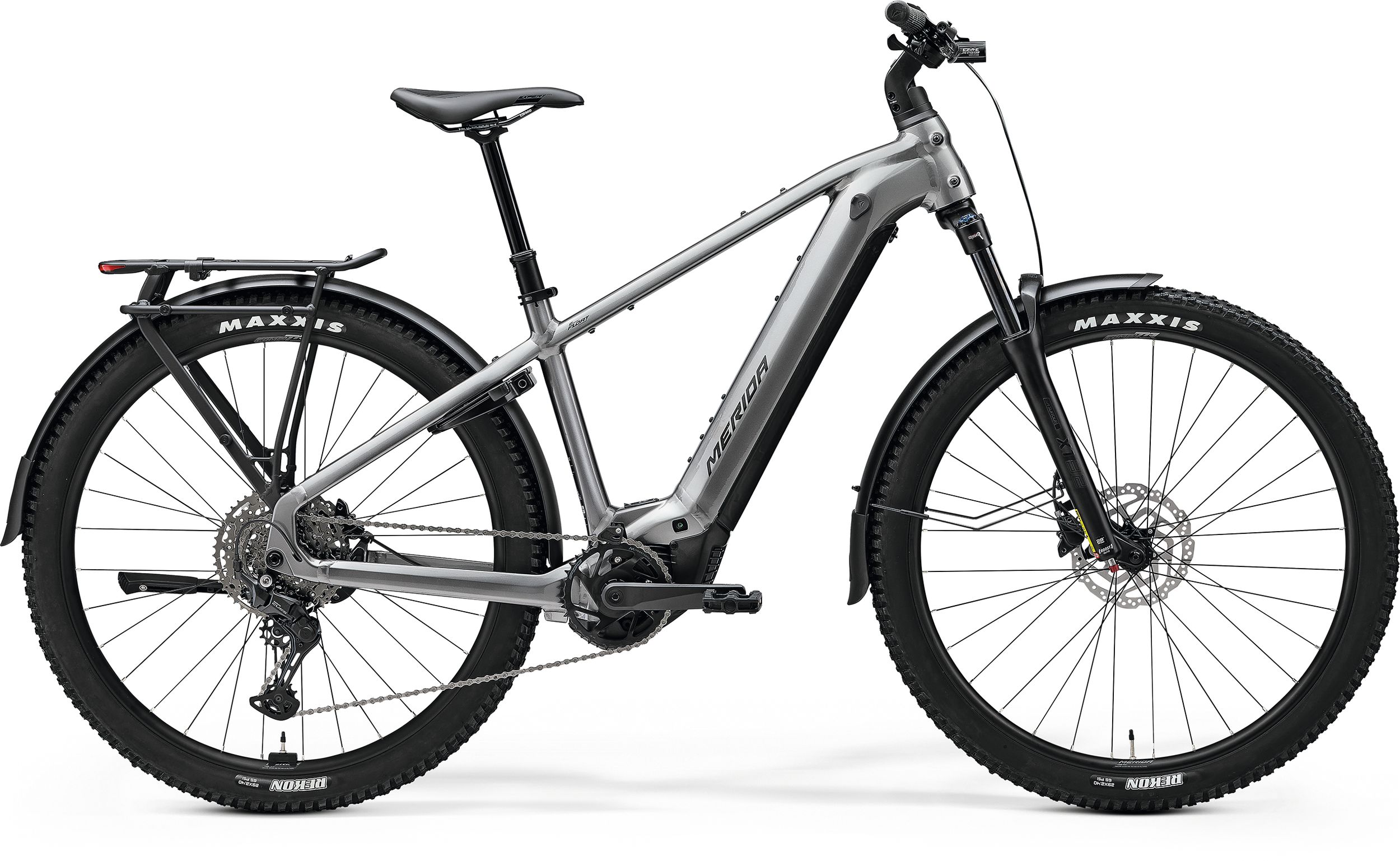

Merida eFLOAT CC 500 EQ 2025 electric bike image 01

Overview

The Merida eFLOAT CC 500 EQ is a mountain bike built for trail riding, offering strong motor support and confident braking for off-road adventures. Its high torque and 600W motor provide good hill climbing power, while the front suspension helps absorb rough terrain. The removable battery adds flexibility for charging and storage, though the bike's weight makes it slightly harder to lift. While the 800Wh battery offers decent range, it may require more planning for longer rides, and the charging time is on the slower side for an e-bike of this type.

Where to buy

Compared with similar mountain bike e-bikes on Bikkerr, this model sits £1,565.35 below average

Lowest price now: £3,700.00 Best price ever seen: £3,700.00 Prices update every ~24 hours
Joint best deal
£3,700.00
Tredz
Merida eFLOAT CC 500 EQ
View deal
Joint best deal
£3,700.00
Merida
Merida eFLOAT CC 500 EQ
View deal

eBike Overview

Icon 1

eBike Type: Mountain Bike

The style of riding intended for this bike

Icon 1

Released: 2025

The bike was released 1 years ago

Icon 1

Screen

Bosch Purion 200

Icon 1

Lights Included

Yes

Weight Icon

Weight (inc battery): 28.7 kg

The website average for electric bikes is 24.55 kg. This electric bike is 4.14 kg over the average. Total bike weight may vary depending on frame size.

Esystem & Battery

Icon 1

Motor Name

Bosch Performance Line CX (latest Generation 5/BDU 384 Y)

Icon 1

Motor Power

600 watts

Icon 1

Motor Torque

85 N.m

Icon 1

Sensor Type

Torque and Cadence Sensor

Icon 1

Battery Capacity

800 wh

Icon 1

Claimed Max Range

55 miles (88.5 km)

Icon 1

Charge Time

5h 0m

Icon 1

Removable Battery

Yes

Sizing & Geometry

Icon 1

Min / Max Rider Height

S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")

Icon 1

Adjustable Sizing

Adjustable saddle height

Icon 1

Folded Dimensions

n/a

Wheel & Tire Details

Icon 1

Wheelset Name

Merida Comp CC (20 mm inner width, aluminium)

Icon 1

Wheelset Size

27.5 inch

Icon 1

Tires

Maxxis Metropass AT

Frame Info

Icon 1

Frame Material

Aluminium

Icon 1

Suspension Type

Front Suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

140 kg (308.6 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano CUES U6000 / LG400 with FSA crank

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano CUES U 6000 (Rapidfire Plus)

Icon 1

Amount of gears

11 Gears

Icon 1

Rear Derailleur

Shimano CUES U 6000 GS

Icon 1

Front Derailleur

None

Icon 1

Cassette

Shimano LG 300-10 11-48 teeth

Icon 1

Cranks

FSA CK-320 (165 mm arm length)

Icon 1

Chain

Shimano LG 500

Icon 1

Bottom Bracket

Integrated within the Bosch Drive Unit

Brakes

Icon 1

Brakes

Shimano MT-200

Hydraulic Disc Brakes

Brake Type: Hydraulic Disc Brakes

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

Shimano RT 10 (180 mm front and rear)

Icon 1

Shifters

Shimano CUES U 6000 (Rapidfire Plus)

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

The eFLOAT CC 500 doesn't care where you're going - it'll get you there. With grippy 2.4" wide MTB-style tyres on smooth rolling 29" wheels plus a 120 mm Suntour suspension air fork, it'll tame broken road surfaces and off-road trails easily. Coming fully equipped with lights, lock, mudguards, rear rack and a kickstand, it's also an ideal city companion too, while the Bosch CX drive unit and large capacity 800 Wh battery offer smooth and reliable ... Read More
