eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
Shimano SC-EN600
Lights Included
Yes
Weight (inc battery): 25.64 kg
The website average for electric bikes is 24.55 kg. This electric bike is 1.08 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano STEPS EP 6
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
750 wh
Claimed Max Range
65 miles (104.6 km)
Charge Time
6h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS 150–160 cm (4'11"–5'3") | S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp CC (20 mm inner width, aluminium)
Wheelset Size
27.5 inch
Tires
Kenda Booster
Frame Info
Frame Material
Aluminium
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
SRAM NX Eagle / PG-1210 with Samox crank
Drivechain type
Chain drive
Shifters
SRAM NX Eagle MMX
Amount of gears
12 Gears
Rear Derailleur
SRAM NX Eagle
Front Derailleur
None
Cassette
SRAM PG-1210 Eagle (11-50 teeth, 12-speed)
Cranks
Shimano FC-EN 600 (165 mm arms) with a SRAM Eagle 38 T chainring
Chain
SRAM SX Eagle
Bottom Bracket
Integrated (Part of the Shimano EP 6 drive unit)
Brakes
Brakes
Sram DB8
Brake Type: Hydraulic Disc Brakes
Hydraulic operated discs brakes (Very good)
Brake Rotors
Shimano RT 30 (180 mm front) / Shimano RT-EM 300 (180 mm rear)
Shifters
SRAM NX Eagle MMX
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

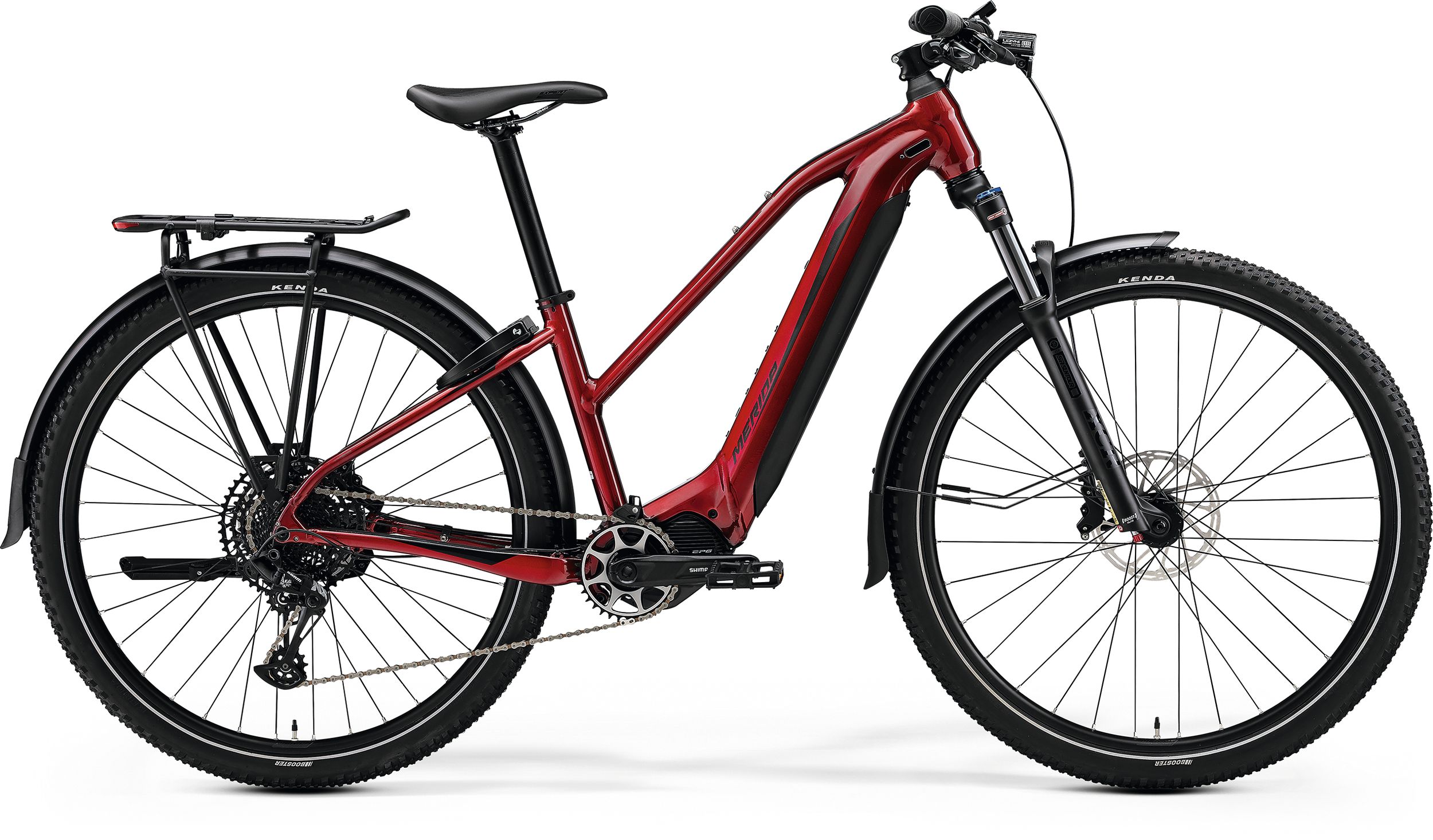

Dressed for the city but ready for the trails, the eBIG.TOUR 675 EQ has all the equipment needed for everyday urban riding but with the powerful helping hand of the new Shimano EP6 drive unit and 750 Wh battery integrated into the low-step-through frame. Thanks to chunky tyres and a SR Suntour suspension fork, it's also more than capable of taking detours into the dirt, whether you want to liven up your everyday riding or head off on a bigger adv ... Read More
