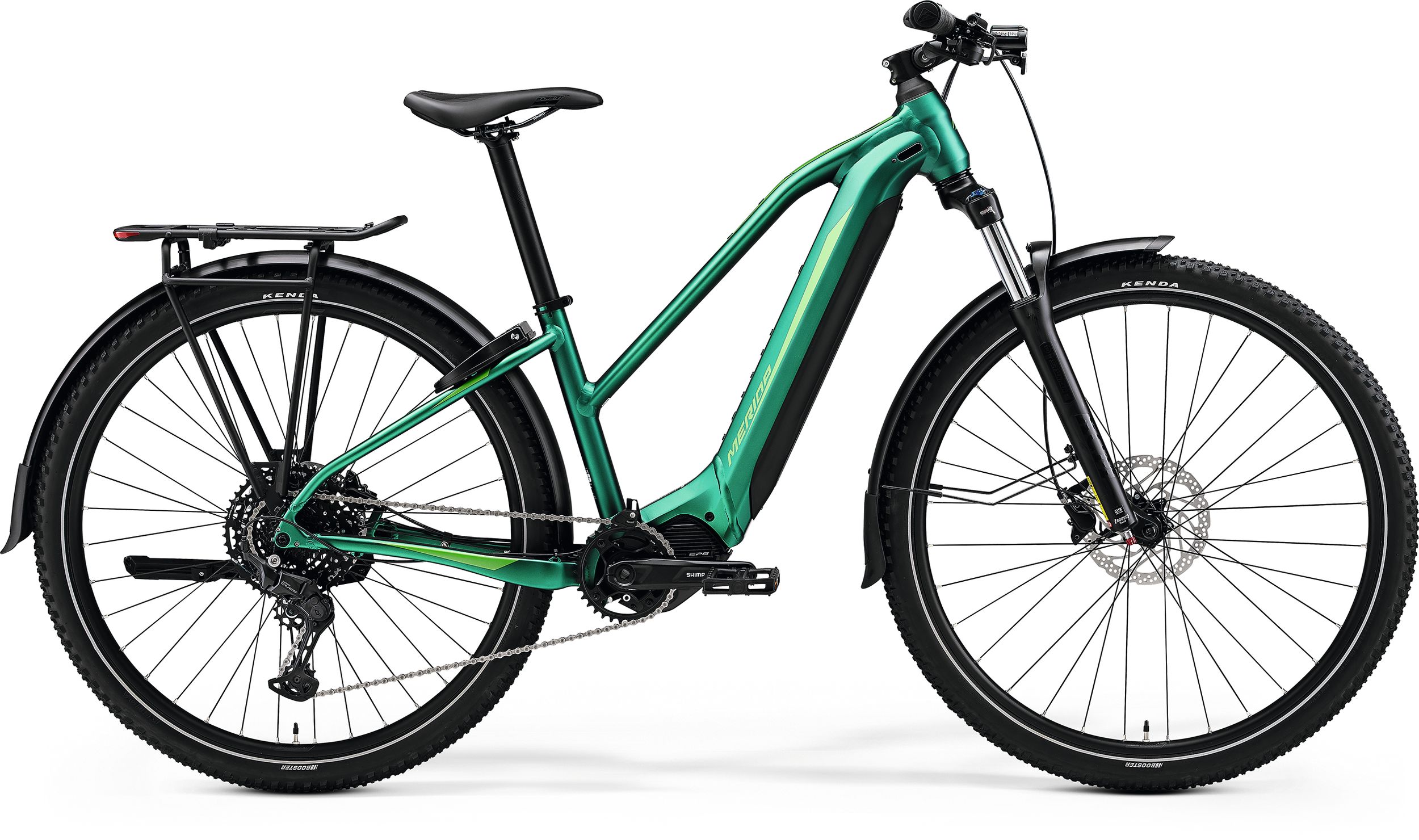

Merida eBIG TOUR 475 EQ 2024 electric bike image 01

Overview

The Merida eBIG TOUR 475 EQ is a well-rounded commuter bike designed for daily use, offering a smooth and controlled ride with its 500W motor and torque sensor for natural assistance. Its 750Wh battery provides a decent range for urban commutes, and the removable battery adds flexibility for charging and storage. Hydraulic disc brakes offer confident stopping power, while the aluminium frame balances durability with a slightly heavier feel that might make lifting the bike a bit more effort. However, the charging time is notably slow, and the bike’s weight limits its portability, so it’s best suited for regular use rather than frequent carrying or tight storage spaces.

Where to buy

Compared with similar commuter bike e-bikes on Bikkerr, this model sits £412.29 above average

Lowest price now: £3,300.00 Best price ever seen: £3,300.00 Price drop detected Prices update every ~24 hours
Best deal
£3,300.00
RRP £3,750.00
↓ £450.00 (12.00%)
Merida
Merida eBIG TOUR 475 EQ
View deal
Last known price £3,300.00
Currently unavailable
Leisure Lakes Bikes
Merida eBIG TOUR 475 EQ
View deal
Last known price £3,300.00
Currently unavailable
Tredz
Merida eBIG TOUR 475 EQ
View deal

eBike Overview

Icon 1

eBike Type: Commuter Bike

The style of riding intended for this bike

Icon 1

Released: 2024

The bike was released 2 years ago

Icon 1

Screen

Shimano SC-EN500

Icon 1

Lights Included

Yes

Weight Icon

Weight (inc battery): 27.36 kg

The website average for electric bikes is 24.55 kg. This electric bike is 2.80 kg over the average. Total bike weight may vary depending on frame size.

Esystem & Battery

Icon 1

Motor Name

Shimano Steps EP 6 (EP 600)

Icon 1

Motor Power

500 watts

Icon 1

Motor Torque

85 N.m

Icon 1

Sensor Type

Torque and Cadence Sensor

Icon 1

Battery Capacity

750 wh

Icon 1

Claimed Max Range

65 miles (104.6 km)

Icon 1

Charge Time

6h 0m

Icon 1

Removable Battery

Yes

Sizing & Geometry

Icon 1

Min / Max Rider Height

XS 150–160 cm (4'11"–5'3") | S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")

Icon 1

Adjustable Sizing

Adjustable handlebar height, Adjustable saddle height

Icon 1

Folded Dimensions

n/a

Wheel & Tire Details

Icon 1

Wheelset Name

Merida Comp CC rims (20 mm inner width) laced to Shimano QC 300-standard hubs (front) and Shimano TC 500-MS-B (rear)

Icon 1

Wheelset Size

27.5 inch

Icon 1

Tires

Kenda Booster

Frame Info

Icon 1

Frame Material

Aluminium

Icon 1

Suspension Type

Front Suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

150 kg (330.7 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano CUES U6000 / LG300

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano CUES U 6000

Icon 1

Amount of gears

10 Gears

Icon 1

Rear Derailleur

Shimano CUES U 6000 GS

Icon 1

Front Derailleur

None

Icon 1

Cassette

Shimano LG 300; 11-48 teeth; 10-speed

Icon 1

Cranks

Shimano FC-EM 600; 165 mm length with a Shimano CRE 70-B 34-tooth chainring

Icon 1

Chain

Shimano LG 500

Icon 1

Bottom Bracket

Integrated within the Shimano EP 6 motor unit

Brakes

Icon 1

Brakes

Shimano MT-200

Hydraulic Disc Brakes

Brake Type: Hydraulic Disc Brakes

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

Shimano RT 30 (180 mm front) and RTEM 300 (180 mm rear)

Icon 1

Shifters

Shimano CUES U 6000

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 475 EQ does just that, with the new Shimano EP6 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 750 Wh battery and genero ... Read More
