eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2026
The bike was released this year
Screen
Shimano SC-EN500A
Lights Included
Yes
Weight (inc battery): 23.5 kg
The website average for electric bikes is 24.55 kg. This electric bike is 1.06 kg under the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano EP 6 (DU-EP 600)
Motor Power
250 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
630 wh
Claimed Max Range
55 miles (88.5 km)
Charge Time
5h 30m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
S: 155–164 cm, M: 165–176 cm, L: 177–188 cm, XL: 189–200 cm
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp CC II (25 mm inner width, Tubeless Ready)
Wheelset Size
29 inch
Tires
Maxxis Ikon 29x2.2
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
Shimano CUES U6000 / LG300
Drivechain type
Chain drive
Shifters
Shimano CUES U 6000-10 R
Amount of gears
10 Gears
Rear Derailleur
Shimano CUES U 6000 (Link Glide)
Front Derailleur
None
Cassette
Shimano LG 300; 11-48 teeth; 10-speed
Cranks
Shimano FC-EM 600 (165 mm arms) with a 38 T Shimano chainring
Chain
Shimano LG 500 (Link Glide specific)
Bottom Bracket
Integrated into the Shimano EP 6 drive unit
Brakes
Brakes
Shimano MT-200
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm Shimano RT 10 rotors
Shifters
Shimano CUES U 6000-10 R
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

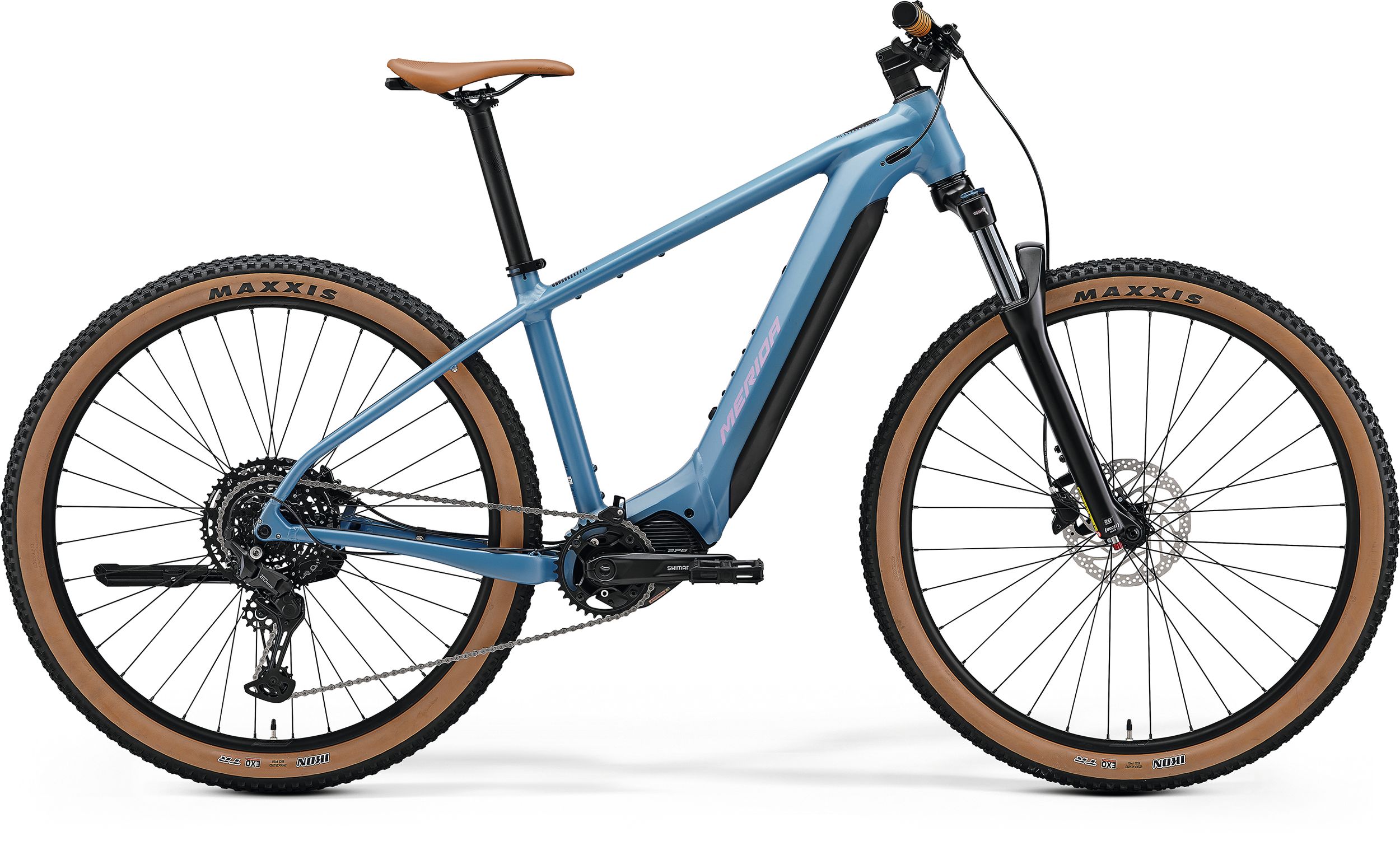

The power to do more of what matters. That's what the eBIG.NINE 400 offers. More fun when you're riding off-road, with a powerful new Shimano EP6 drive unit to help you up the hills. More time on the bike, with a 630 Wh battery that'll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that' ... Read More
