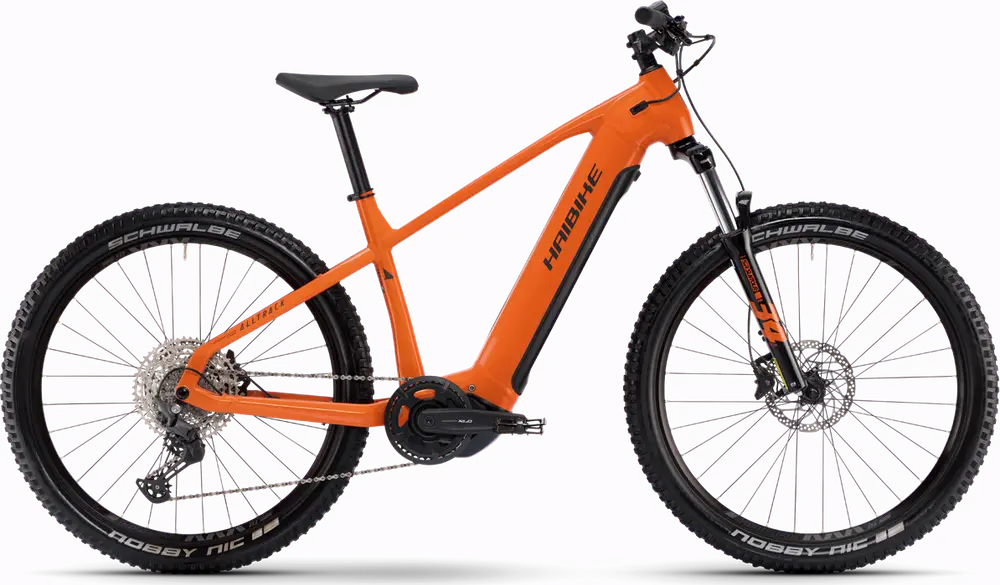

eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2023
The bike was released 3 years ago
Screen
Yamaha Side Switch, 1.7" LCD
Lights Included
No
Weight (inc battery): 24.3 kg
The website average for electric bikes is 23.00 kg. This electric bike is 1.29 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
S: 160–170 cm, M: 168–178 cm, L: 175–185 cm, XL: 183–195 cm
Folded Dimensions
Unknown
Wheel & Tire Details
Wheelset Name
Rodi Tryp 30 Disc double-wall aluminum eyeleted rims laced via Sapim Leader spokes to Shimano MT 400-B Centerlock Boost hubs (15 x 110 mm front / 12 x 148 mm rear)
Wheelset Size
27.5 inch
Tires
Schwalbe, Nobby Nic Performance, 65-584, 27.5" x 2.6"
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
120 kg (264.6 lbs)
Drivechain Details
Groupset details
NX
Drivechain type
Chain drive
Shifters
SRAM NX Trigger Shift X-Actuation 11-speed right-hand lever
Amount of gears
11 Gears
Rear Derailleur
SRAM NX X-Horizon
Front Derailleur
None
Cassette
SRAM PG-1130 11-speed cassette with an 11-42 T cog spread
Cranks
Miranda Kies ISIS custom alloy crank arms (170 mm) fitted with a 38 T steel chainring
Chain
SRAM PC-1110 11-speed chain
Bottom Bracket
None (integrated)
Brakes
Brakes
Shimano Deore
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm Shimano RT 30-M Centerlock rotors
Shifters
SRAM NX Trigger Shift X-Actuation 11-speed right-hand lever
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping:
Warranty: None
Limited warranty website average: 3.12 years
