eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
Giant RideDash EVO (full-color LCD display)
Lights Included
No
Weight (inc battery): 26.4 kg
The website average for electric bikes is 22.99 kg. This electric bike is 3.40 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
S: 163–172 cm | M: 169–179 cm | L: 176–186 cm | XL: 183–193 cm
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a

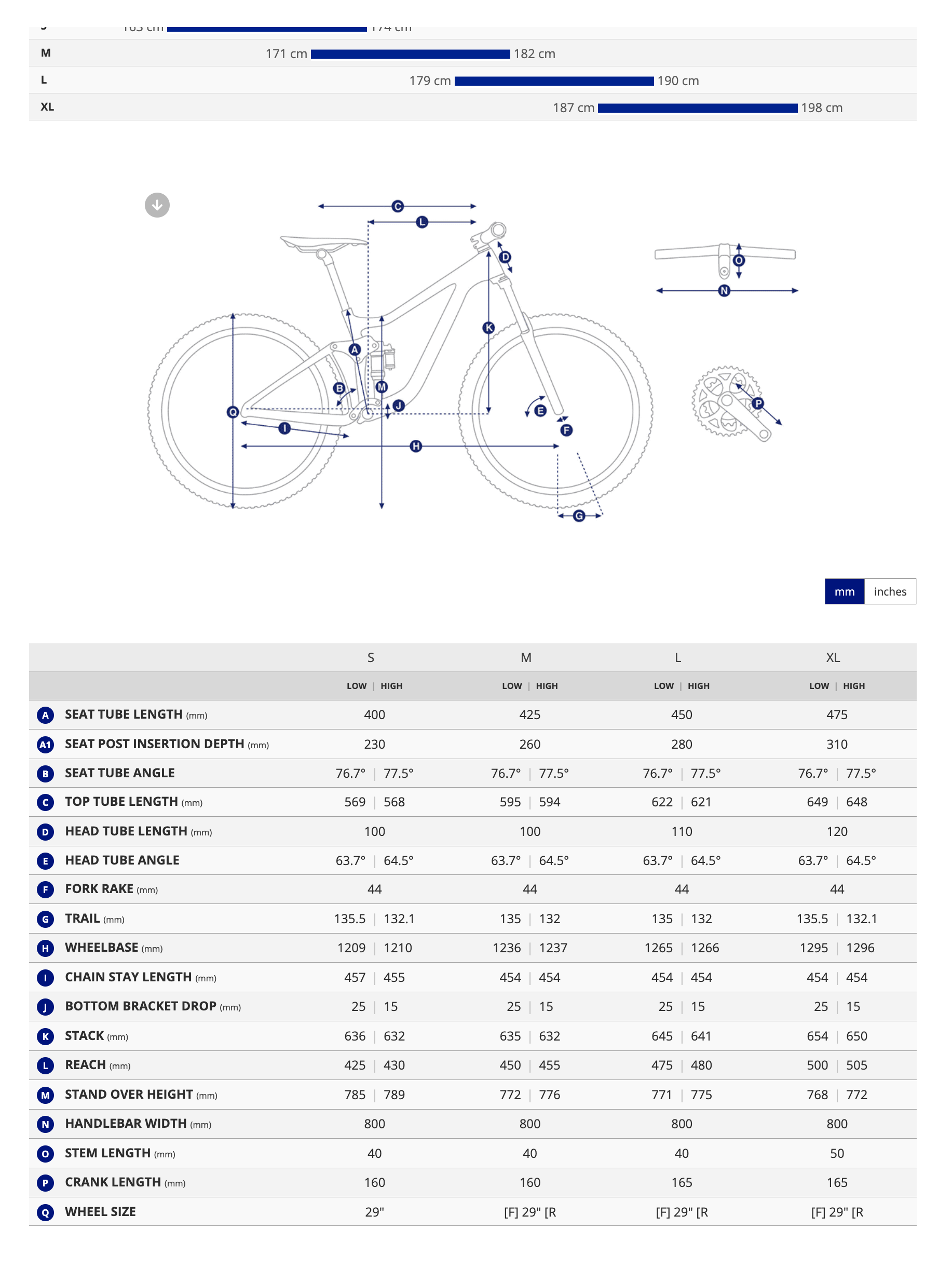

Sizing Chart
Wheel & Tire Details
Wheelset Name
Giant e-AM 30 (Tubeless ready, 30 mm inner width)
Wheelset Size
29 inch
Tires
Maxxis Assegai 29x2.5 / Maxxis Minion DHR II 29x2.4
Frame Info
Frame Material
Aluminium

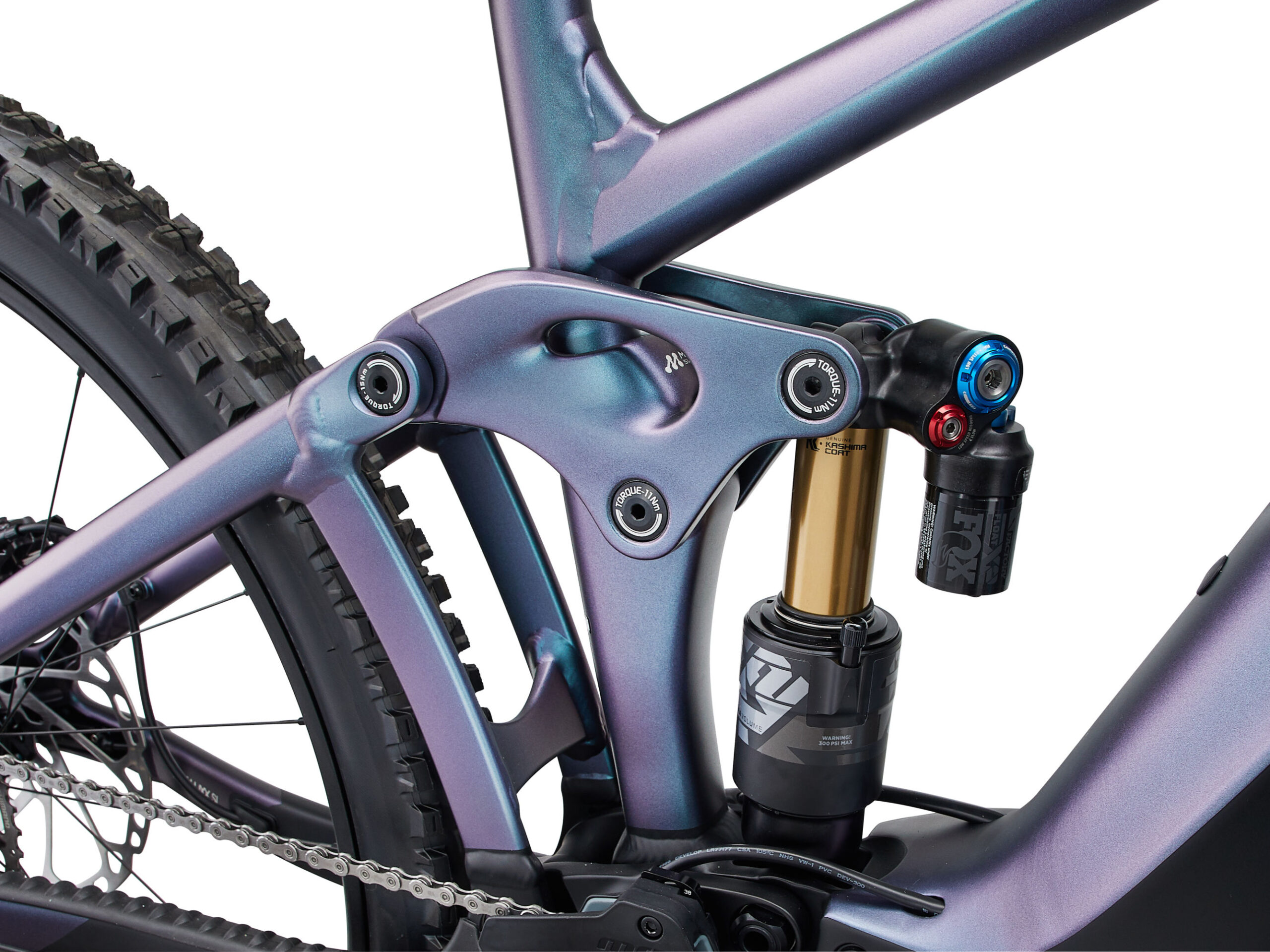

Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
130 kg (286.6 lbs)
Drivechain Details
Groupset details
Shimano XT 1x12; Shimano XT rear derailleur; Shimano CS-M8100 10-51T 12-speed cassette
Drivechain type
Chain drive
Shifters
Shimano Deore XT Link Glide
Amount of gears
12 Gears
Rear Derailleur
Shimano Deore XT Link Glide
Front Derailleur
N/A
Cassette
Shimano Link Glide, CS-LG 700-11, 11-50 T
Cranks
Praxis Wavetm 36 T Cold Forged 4130 premium steel with custom forged alloy crank arms
Chain
Shimano Link Glide, CN-LG 500
Bottom Bracket
Integrated into the Sync Drive Pro motor
Brakes
Brakes
Shimano XT hydraulic disc, 220mm front / 203mm rear
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
220 mm front and rear
Shifters
Shimano Deore XT Link Glide
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Enduro-focused electric mountain bike with long-travel suspension and high-capacity battery for aggressive downhill riding.
