eBike Overview
eBike Type: All Terrain
The style of riding intended for this bike
Released: 2023
The bike was released 3 years ago
Screen
Giant RideControl Dash (full-color LCD display)
Lights Included
Yes
Weight (inc battery): 26.5 kg
The website average for electric bikes is 22.99 kg. This electric bike is 3.50 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
S: 162–172 cm | M: 169–179 cm | L: 176–186 cm | XL: 183–193 cm
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a

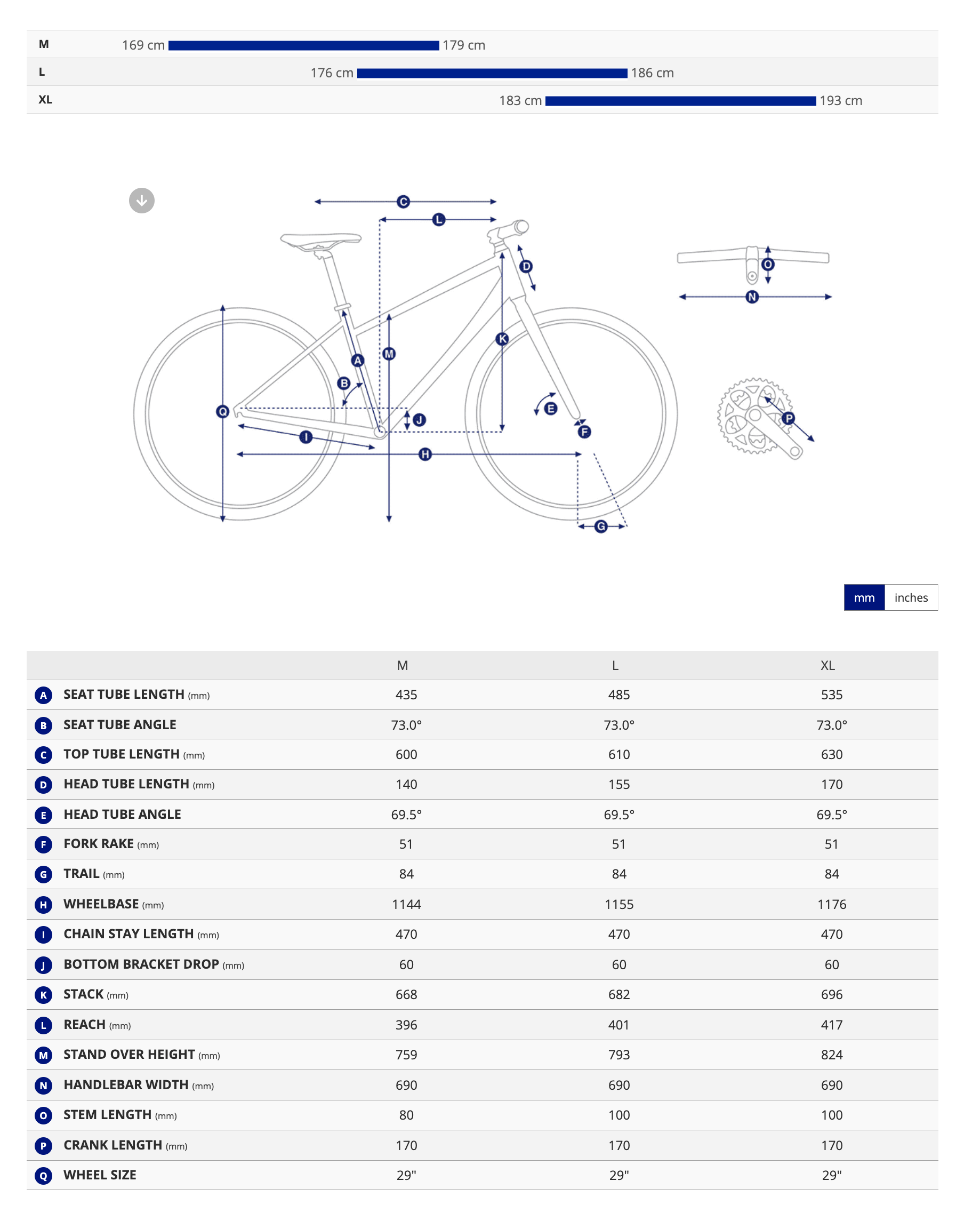

Sizing Chart
Wheel & Tire Details
Wheelset Name
Giant e X 25, Tubeless Ready, 700 c Aluminium
Wheelset Size
700c
Tires
Giant Crosscut Gravel 700x45c
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
130 kg (286.6 lbs)
Drivechain Details
Groupset details
Shimano Deore 1x10; Shimano Deore rear derailleur; Shimano CS-M4100 11-46T 10-speed cassette
Drivechain type
Chain drive
Shifters
Shimano Altus
Amount of gears
10 Gears
Rear Derailleur
Shimano Alivio
Front Derailleur
None
Cassette
Shimano CS-HG 200, 11-36 T, 9-speed
Cranks
Forged Alloy, 42 T Steel direct mount chainring
Chain
KMC e.9 Sport

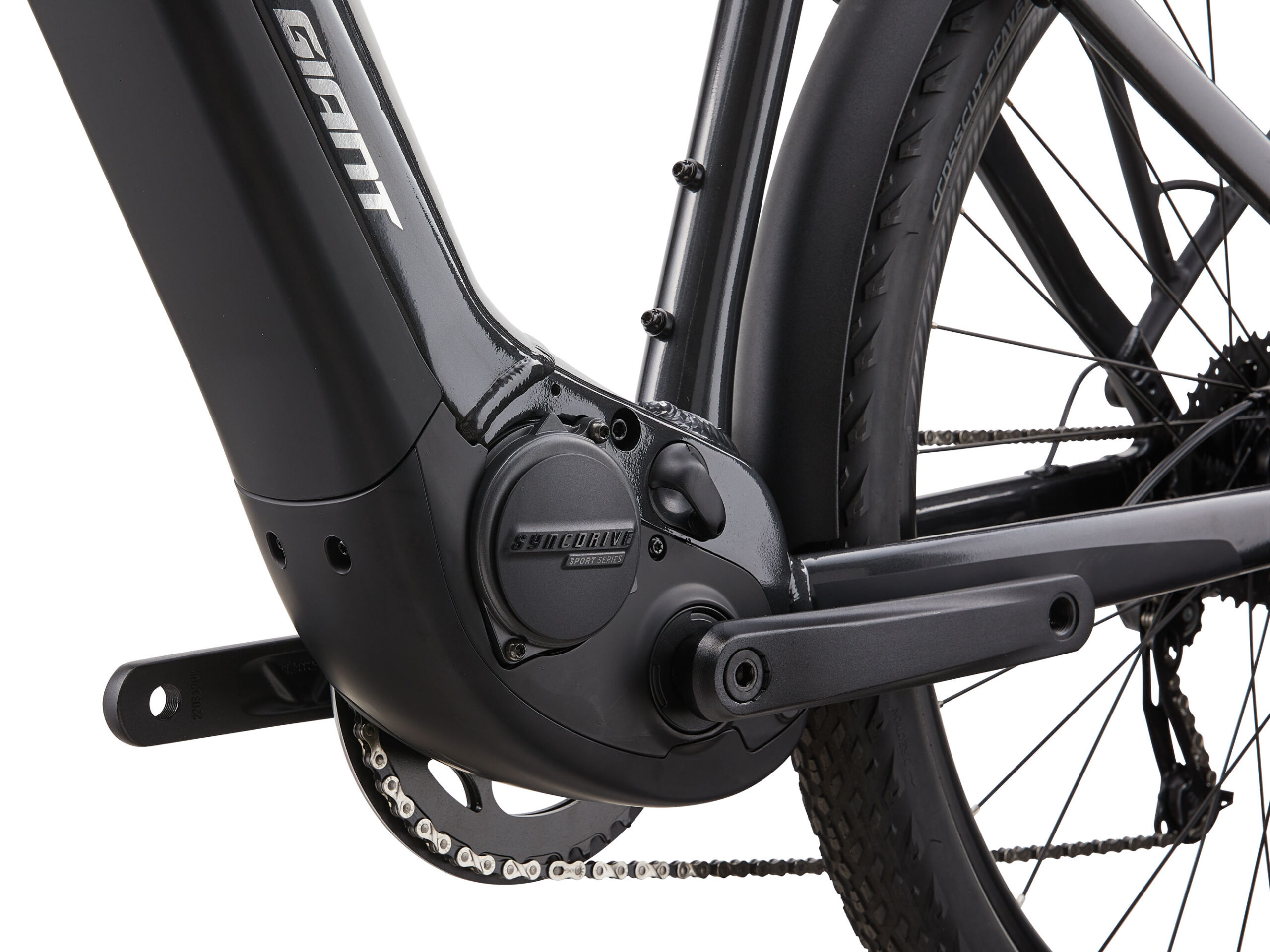

Bottom Bracket
Integrated into the motor

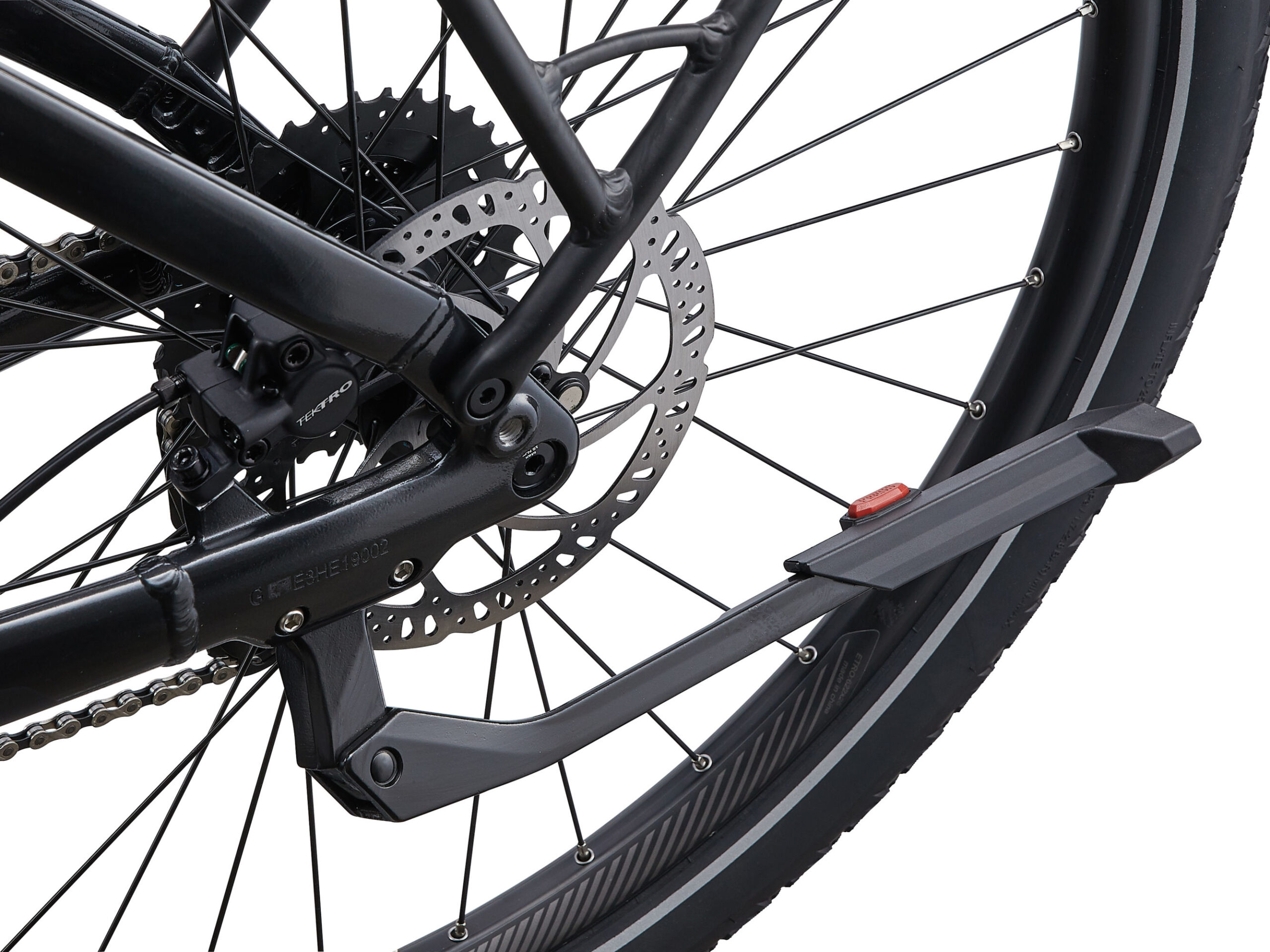

Brakes
Brakes
Shimano MT200 hydraulic disc, 180mm front / 160mm rear
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm rotors front and rear
Shifters
Shimano Altus
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
All-round trekking e-bike combining reliable motor assistance with practical touring features.
