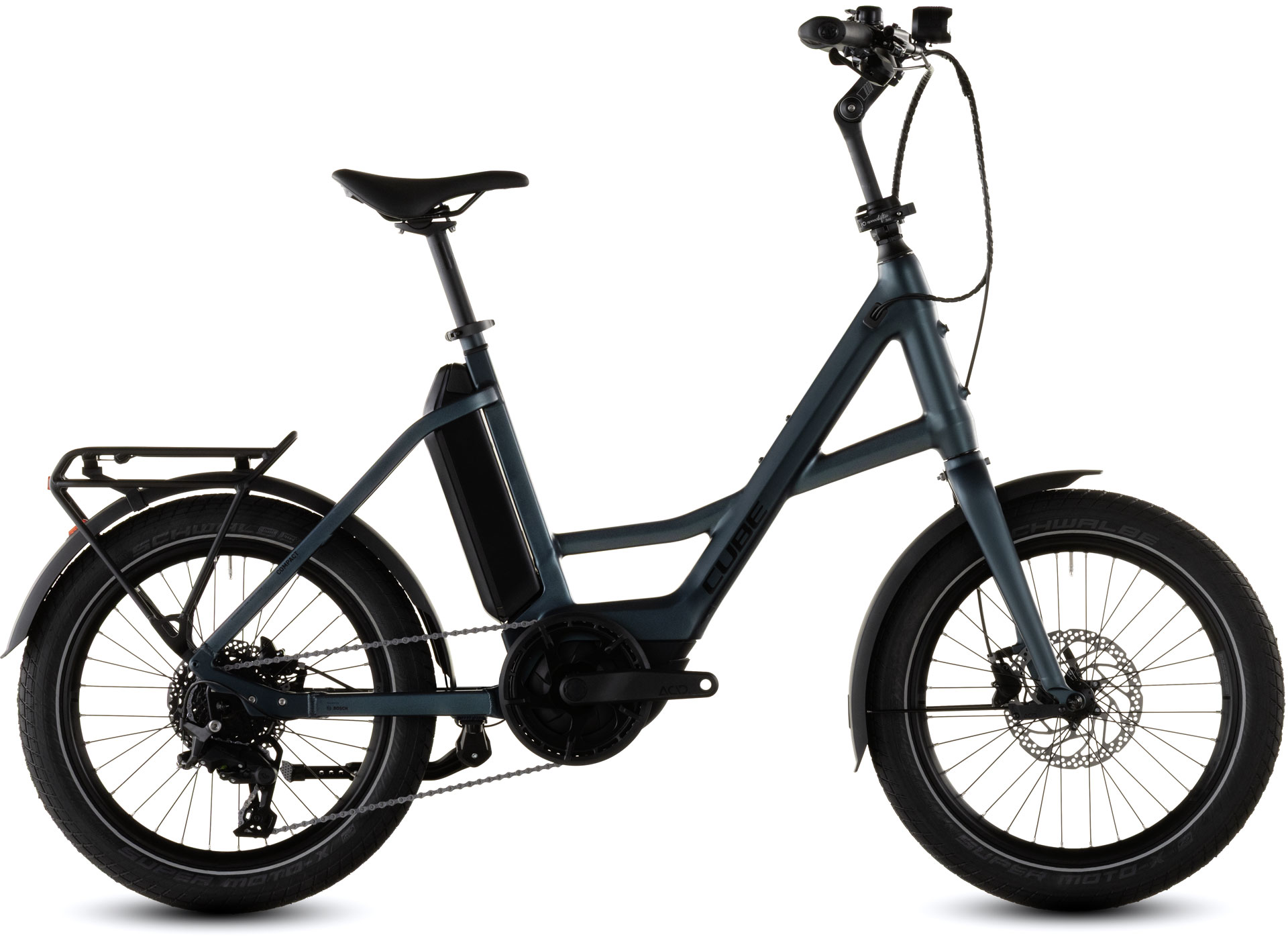

Cube Compact Hybrid 545 2025 electric bike image 01
Cube Compact Hybrid 545 2025 electric bike image 02
Cube Compact Hybrid 545 2025 electric bike image 03
Cube Compact Hybrid 545 2025 electric bike image 04
Cube Compact Hybrid 545 2025 electric bike image 05

Top valued features

Highlights based on this e-bike’s specs, comparisons and practical strengths.

100

Excellent battery efficiency

The bike appears to get strong range from its battery size.

97

Excellent rider information and controls

The included display or control unit should give useful ride information and control.

93

Excellent built-in lighting

Built-in lights are included, which is useful for commuting and low-light riding.

93

Very well-equipped for daily use

Built-in lights add useful everyday practicality.

Overview

The Cube Compact Hybrid 545 is a practical cargo bike designed for everyday use, offering smooth motor support and a well-equipped setup for urban commuting. Its efficient battery provides a reasonable range for daily trips, while the removable battery adds convenience for charging and storage. The hydraulic disc brakes offer confident stopping power, and the torque sensor ensures a natural feel when accelerating. However, its lower motor power and battery capacity may limit performance on steep hills or longer rides, making it better suited for moderate loads and shorter commutes.

Best For

  • This cargo e-bike should suit riders who need a reliable and practical bike for errands, family trips or utility riding, especially those prioritising stable handling and confident braking. Its above-average weight for a cargo e-bike may offer better control and manoeuvrability, while the removable battery and good charging speed make it convenient for daily use. Riders who value a well-equipped bike with features like built-in lights and a torque sensor for natural assistance will likely appreciate its design and functionality.

Who Should Avoid It

  • ×

    Riders needing maximum range or heavier load carrying may want to compare alternatives, as the battery capacity and payload are below average for similar cargo e-bikes. Riders wanting the liveliest assistance or stronger hill-climbing performance may also find stronger options next to rivals in this category. However, the bike still suits riders who value good charging speed, removable battery flexibility and practical everyday features for carrying gear and commuting.

Where to buy

Priced at £2,399, the Cube Compact Hybrid 545 offers a favourable position against similar 2025 cargo e-bikes, with its efficient battery use and reliable hydraulic braking standing out. While it may not match some rivals in range or payload capacity, its practicality and user-friendly handling make it a strong choice for everyday cargo needs.

Compared with similar cargo bike e-bikes on Bikkerr, this model sits £1,355.43 below average

Best price ever seen: £2,499.00 Prices update every ~24 hours
Last known price £2,499.00
Currently unavailable
Tredz
Cube Compact Hybrid 545
View deal

Potential limitations

Areas where this e-bike may be less strong based on its specs and comparisons.

0

Limited motor punch

Motor power is low compared with similar e-bikes.

0

Not ideal for steep hills

Torque is average for this type of e-bike.

0

Low power-to-weight ratio

Power-to-weight is low compared with similar e-bikes.

7

Limited storage practicality

The frame does not appear to fold, so storage will depend more on size and weight.

E-system & battery comparison

Motor Power

250 watts

▼ 180 W below average

Motor Torque

75 Nm

▼ 3.0 Nm below average

Power-to-weight

10.20 W/kg

▼ 1.8 W/kg below average

Battery Capacity

545 Wh

▼ 178 Wh below average

Claimed Max Range

55 miles

▼ 15 miles below average

Charge Time

4h 30m

▼ 70 mins faster than average

Sensor Type

Torque Sensor

Removable Battery

Yes

Motor Name

Bosch Performance Line (Smart System/Generation 3)

eBike FAQs

Is this bike suitable for carrying heavy loads or family gear?

The Cube Compact Hybrid 545 is designed for carrying moderate loads and family gear, but its lower motor power and battery capacity may limit performance with heavier payloads. The bike’s removable battery adds convenience for charging, and its hydraulic disc brakes provide confident stopping power, which is important when carrying extra weight. For everyday use and light to moderate cargo needs, this bike should work well, but it may struggle with very heavy loads or long-distance trips.

How does the motor perform when climbing hills or inclines?

The motor provides smooth support for moderate inclines, but its 250W power and average torque may struggle on steep hills, especially when carrying heavier loads. You'll likely need to pedal more actively on steeper grades, and the bike is better suited for lighter cargo and shorter commutes rather than long or intense climbs.

eBike Overview

Icon 1

eBike Type: Cargo Bike

The style of riding intended for this bike

Icon 1

Released: 2025

The bike was released 1 years ago

Icon 1

Screen

Bosch Intuvia 100

Icon 1

Lights Included

Yes

Weight Icon

Weight (inc battery): 24.5 kg

The website average for electric bikes is 22.99 kg. This electric bike is 1.50 kg over the average. Total bike weight may vary depending on frame size.

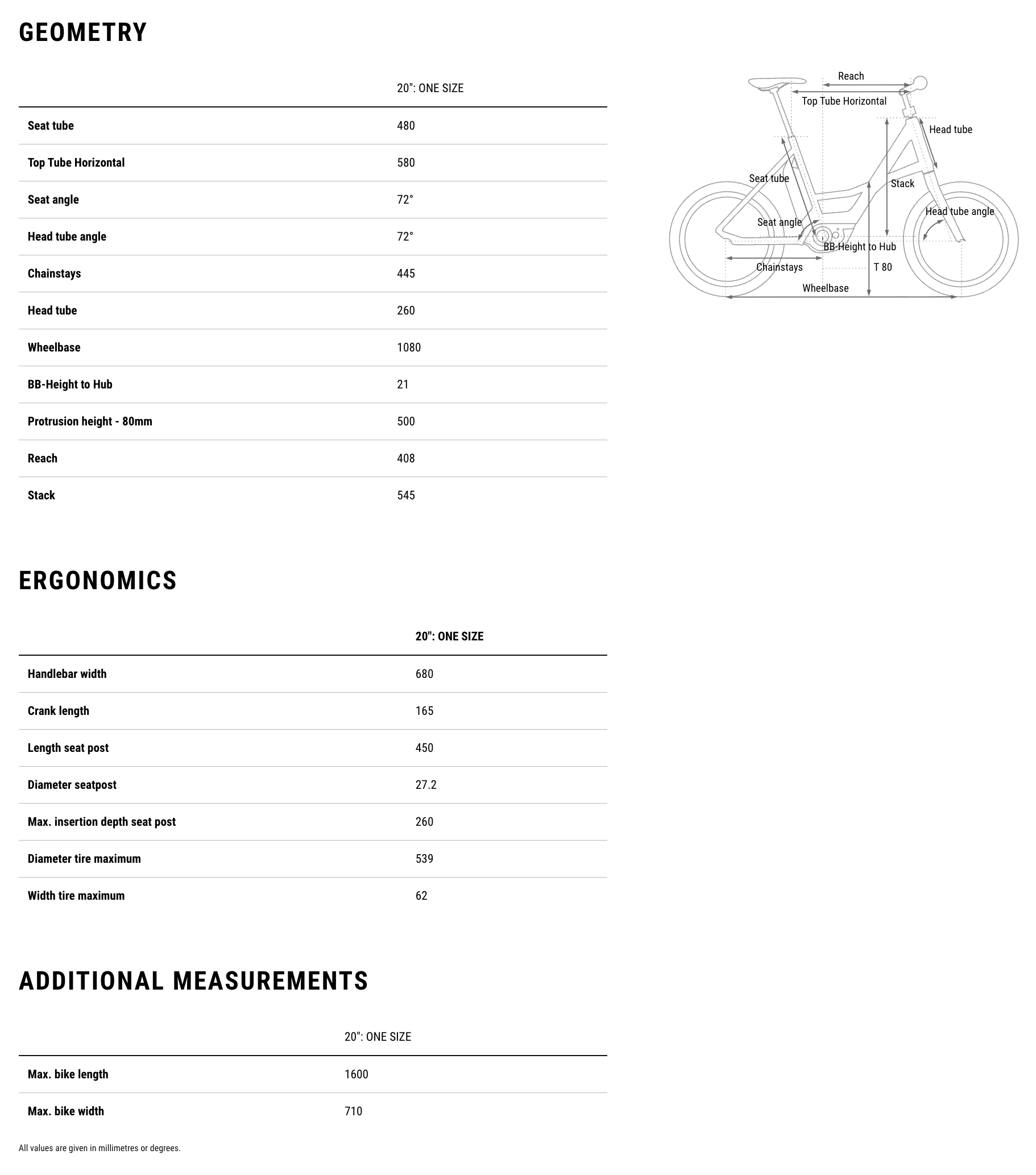

Sizing & Geometry

Icon 1

Min / Max Rider Height

One Size

Icon 1

Adjustable Sizing

Adjustable saddle height

Icon 1

Folded Dimensions

Unknown

Icon 1

Sizing Chart

View Sizing Chart

Wheel & Tire Details

Icon 1

Wheelset Name

ACID EX 30 rims (Tubeless Ready) with Shimano HB-QC 300 hubs

Icon 1

Wheelset Size

20 inch

Icon 1

Tires

Schwalbe Super Moto-X

Frame Info

Icon 1

Frame Material

Aluminium

Icon 1

Suspension Type

Front Suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

140 kg (308.6 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano Nexus 5E hub gear

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano Cues SL-U 4010, Rapidfire-Plus

Icon 1

Amount of gears

5 Gears

Icon 1

Rear Derailleur

Shimano Cues RD-U 4010

Icon 1

Front Derailleur

N/A

Icon 1

Cassette

Shimano Cues CS-LG 300, 11-36 T

Icon 1

Cranks

ACID Trekking Hybrid, 44 T (or 40 T on some builds)

Icon 1

Chain

KMC e Glide

Icon 1

Bottom Bracket

Integrated within the Bosch Performance Line Drive Unit

Brakes

Icon 1

Brakes

Shimano hydraulic disc brakes

Hydraulic Disc Brake

Brake Type: Hydraulic Disc Brake

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

180 mm front and 160 mm rear

Icon 1

Shifters

Shimano Cues SL-U 4010, Rapidfire-Plus

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: No

Only delivered to specific countries

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

Compact urban e-bike with Bosch Performance motor and versatile cargo capability.
