eBike Overview
eBike Type: Cargo Bike
The style of riding intended for this bike
Released: 2025
The bike was released 1 years ago
Screen
Bosch Kiox 300
Lights Included
Yes
Weight (inc battery): 48 kg
The website average for electric bikes is 22.99 kg. This electric bike is 25.00 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
One Size
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
Unknown

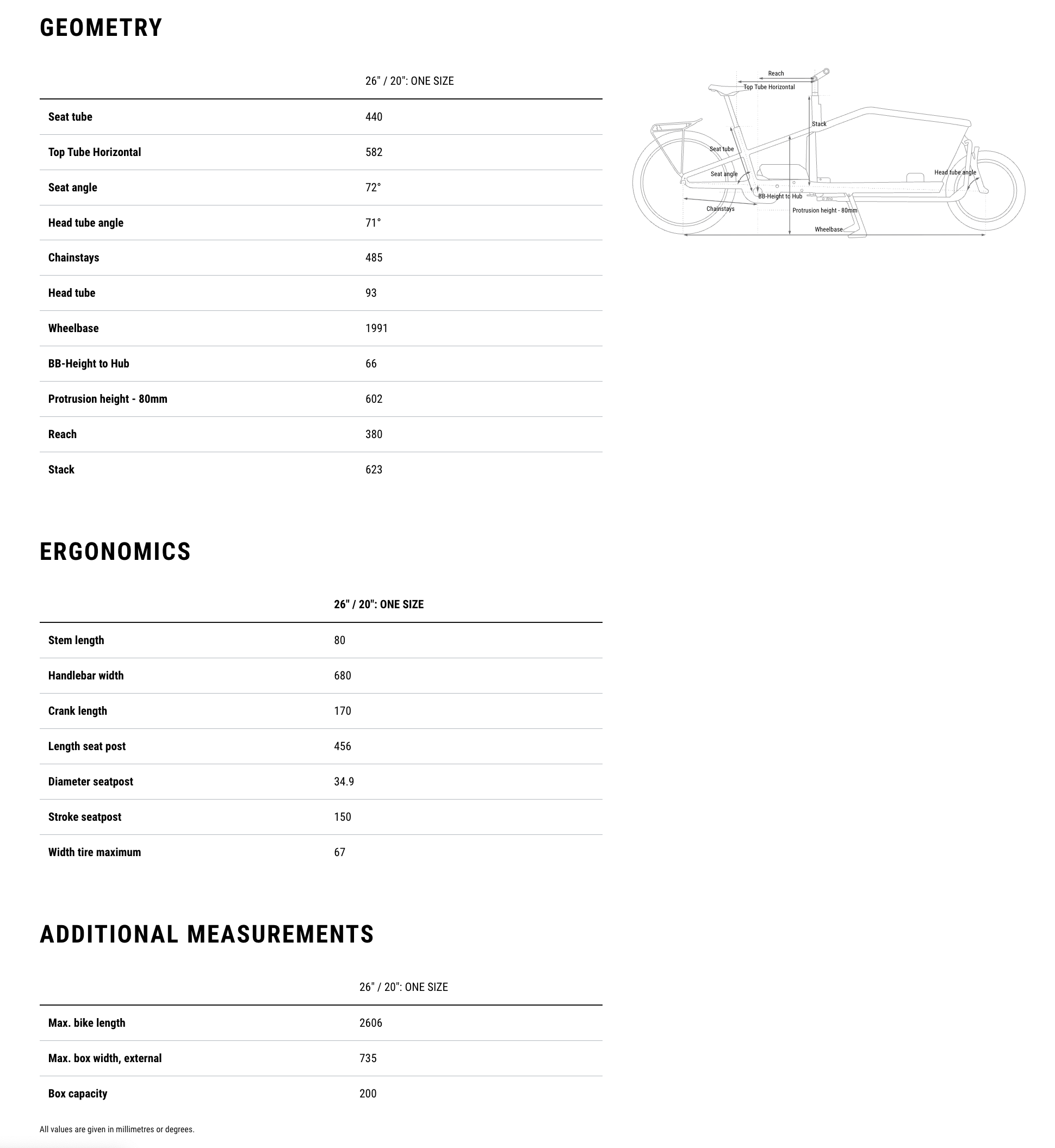

Sizing Chart
Wheel & Tire Details
Wheelset Name
ACID EX 35, 36 H, Disc, Tubeless Ready
Wheelset Size
20 inch
Tires
Schwalbe Pick-Up
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
200 kg (440.9 lbs)
Drivechain Details
Groupset details
Shimano Deore 10-speed
Drivechain type
Chain drive
Shifters
Shimano Nexus SL-C 7000-5 Revoshift
Amount of gears
10 Gears
Rear Derailleur
None
Front Derailleur
None
Cassette
Shimano Nexus, 30 T
Cranks
ACID Trekking Hybrid, 40 T
Chain
KMC Z 610
Bottom Bracket
Integrated with the Bosch Drive Unit
Brakes
Brakes
Magura hydraulic disc brakes
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm (rear) and 203 mm (front)
Shifters
Shimano Nexus SL-C 7000-5 Revoshift
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: No
Only delivered to specific countries
Warranty: 2 Years
Limited warranty website average: 3.12 years

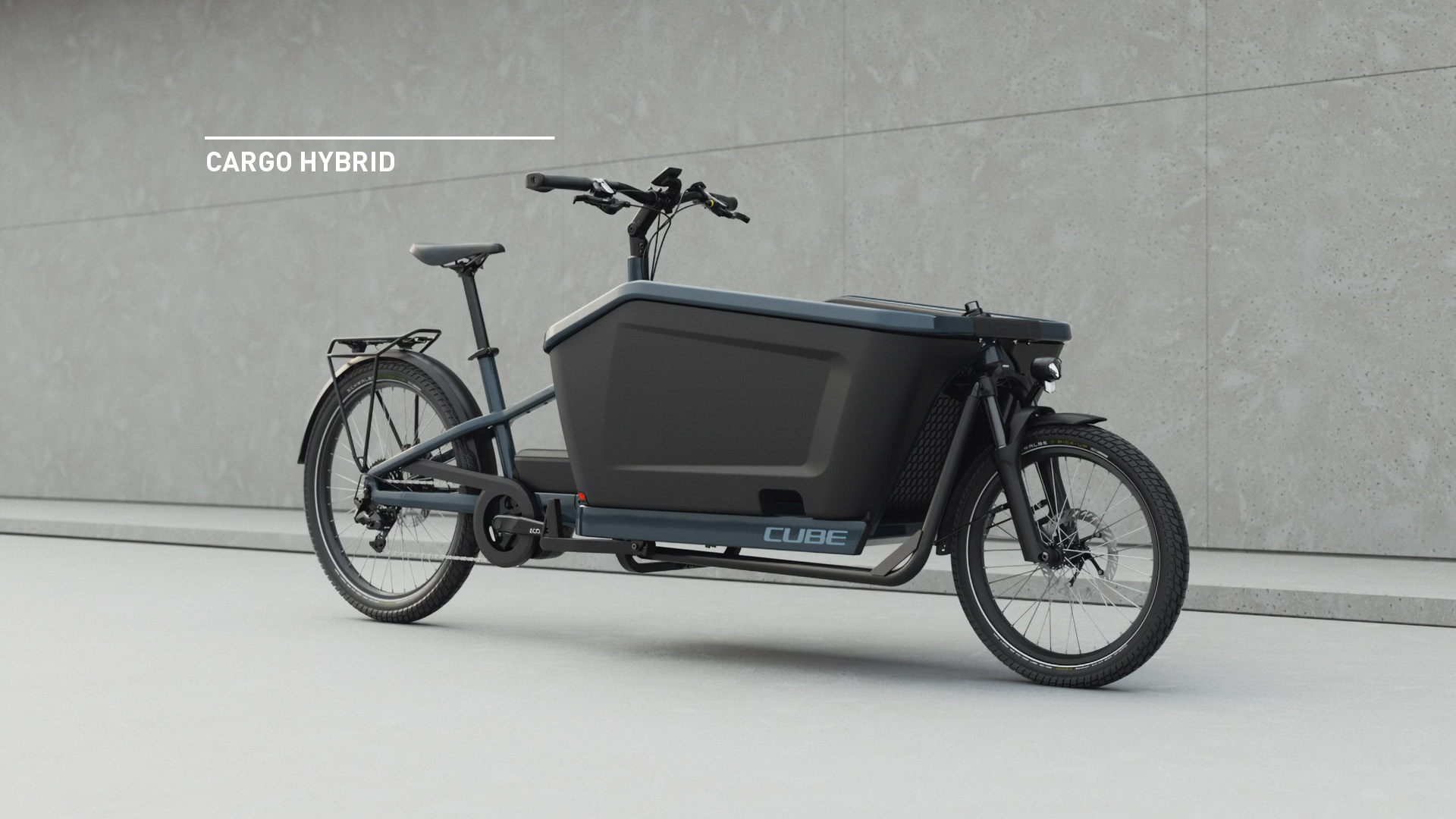

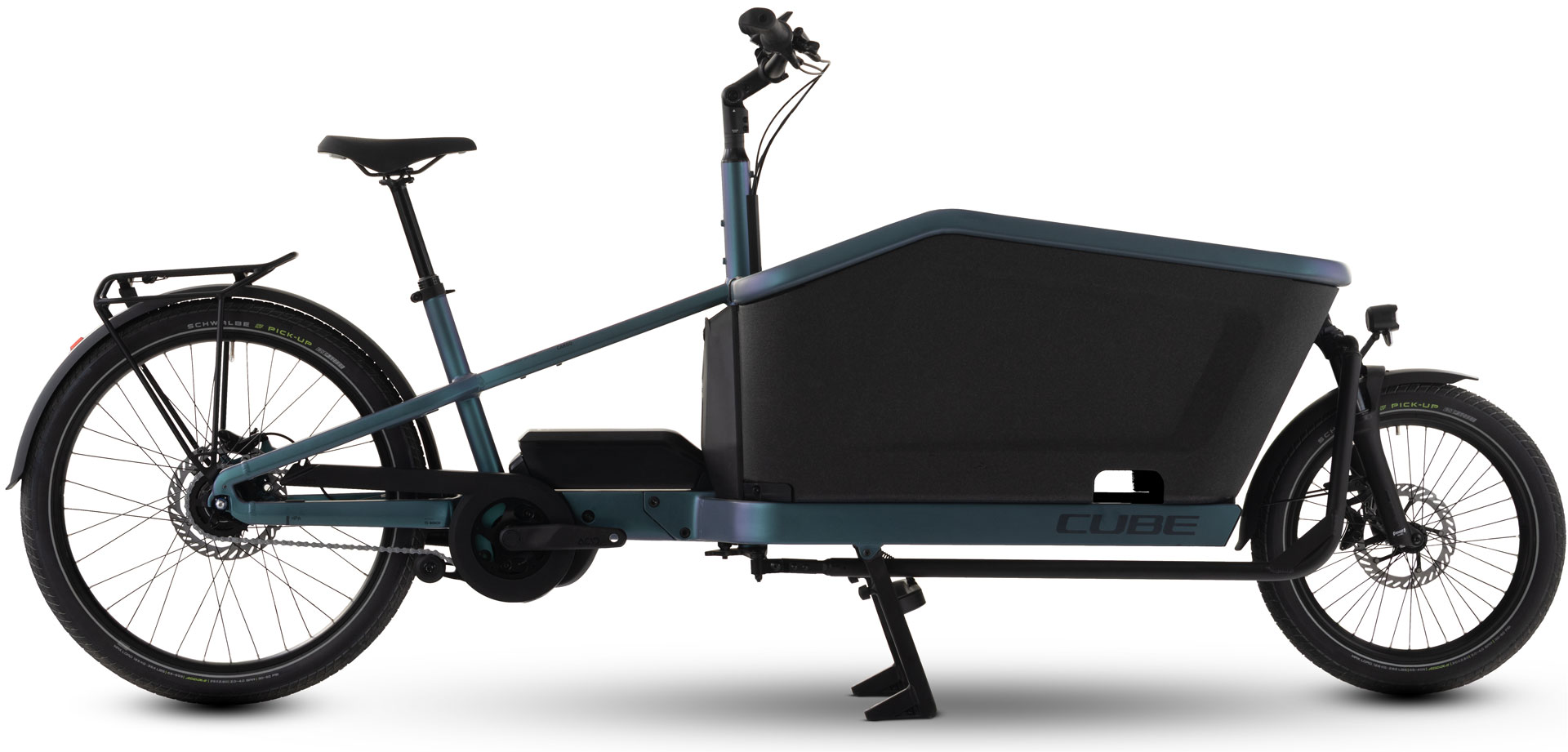

Cargo e-bike with Bosch Cargo Line motor and 800Wh battery for heavy loads.
