Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.2 kg
The website average for Road bikes is 8.56 kg. This bike is 1.36 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Ultegra Di2 R8150, braze-on
Wheelset
Roval Rapide CL II
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry

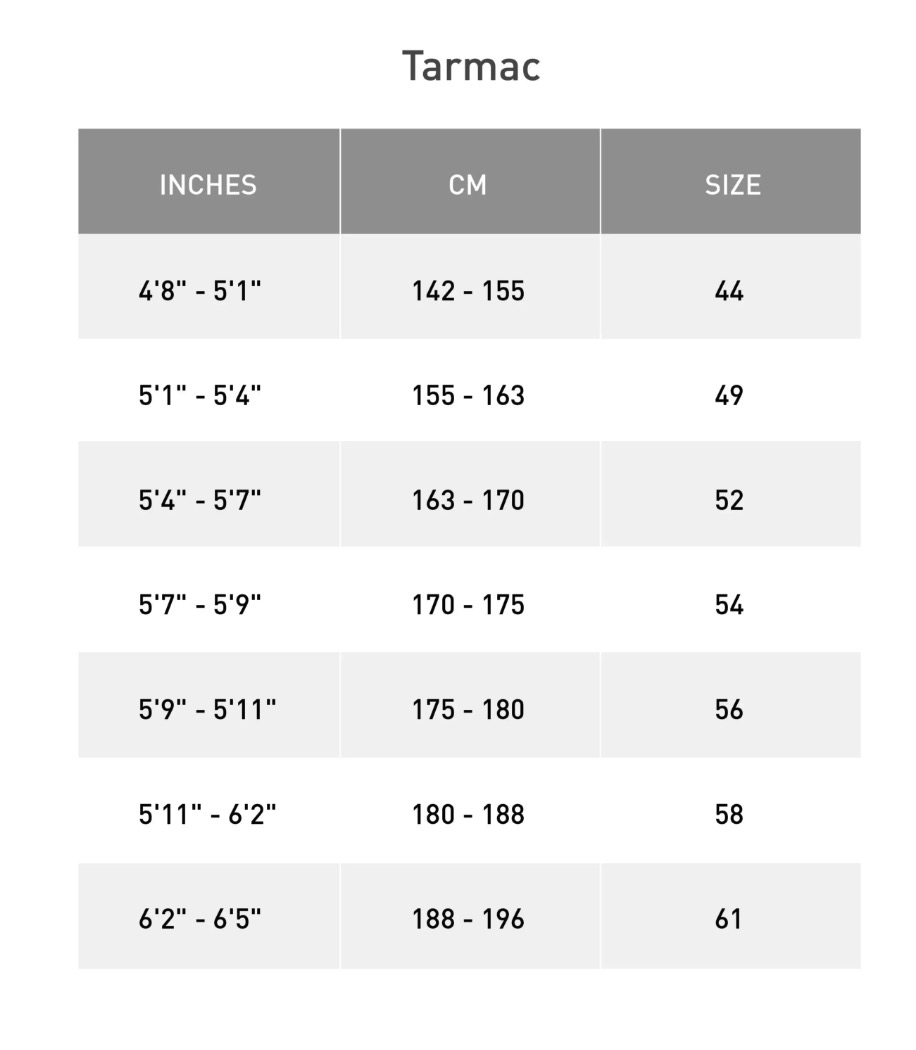

Frame Sizes
44 49 52 54 56 58 61This frame comes in 7 sizes, this is 1.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| Reach (mm) | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| Effective top tube (mm) | 496 | 508 | 531 | 541 | 563 | 577 | 595 |
| Seat tube (mm) | 433 | 458 | 481 | 499 | 519 | 541 | 573 |
| Head tube (mm) | 99 | 109 | 120 | 137 | 157 | 184 | 206 |
| Standover (mm) | 723 | 743 | 766 | 785 | 805 | 826 | 852 |
| Handling | |||||||
| Head angle (°) | 70.50 | 71.75 | 72.50 | 73 | 73.50 | 73.50 | 74 |
| Seat angle (°) | 75.50 | 75.50 | 74 | 74 | 73.50 | 73.50 | 73 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 970 | 973 | 975 | 978 | 991 | 1,005 | 1,013 |
| Fork offset (mm) | 47 | 47 | 47 | 44 | 44 | 44 | 44 |
| Trail (mm) | 71 | 63 | 58 | 62 | 58 | 58 | 55 |
Frame Details
Frame Weight
This frame weighs 780g
Frame Material
Carbon Fiber
Forks
Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Ultegra Di2 R8150, braze-on
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Ultegra Di2 R8170, hydraulic disc
Front Derailleur
Shimano Ultegra Di2 R8150, braze-on mount. (Official)
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Cassette
Shimano Ultegra R8100, 12-speed. (Official)
Cranks
Shimano Ultegra R8100 (Length size-specific)
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Shimano Threaded BSA
Chain
Shimano Ultegra M8100, 12-speed with Quick-Link. (Official)
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Roval Rapide CL II
Front Wheel Depth
51mm
Rear Wheel Depth
60mm
Tires
S-Works Turbo, 2BR, 700x26mm
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Hydraulic Disc
Brake Rotors
160 mm front rotor, 140 mm rear rotor (Shimano MT800 Center Lock rotors)
Other Components
Saddle
Power Pro with Mirror
Seatpost
S-Works Tarmac SL8 Carbon seat post
Handlebars
Roval Rapide Cockpit, Integrated Bar/Stem
Bar Tape
Supacaz Super Sticky Kush
