Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9 kg
The website average for Road bikes is 8.56 kg. This bike is 0.43 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 Di2 R7170, braze-on
Wheelset
DT Swiss G540
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 40 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
44 49 52 54 56 58 61 64This frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Rider height | 142–155 cm | 155–163 cm | 163–170 cm | 170–175 cm | 175–180 cm | 180–188 cm | 188–196 cm | — |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||||
| Stack (mm) | 543 | 557 | 571 | 585 | 605 | 625 | 650 | 685 |
| Reach (mm) | 353 | 363 | 371 | 381 | 384 | 392 | 398 | 409 |
| Effective top tube (mm) | 503 | 518 | 534 | 550 | 563 | 579 | 595 | 615 |
| Seat tube (mm) | 385 | 415 | 440 | 465 | 495 | 525 | 555 | 590 |
| Head tube (mm) | 85 | 98 | 111 | 122 | 143 | 164 | 191 | 224 |
| Standover (mm) | 686 | 715 | 741 | 761 | 787 | 812 | 841 | 871 |
| Handling | ||||||||
| Head angle (°) | 69.30 | 70.50 | 71.50 | 71.50 | 72.30 | 72.30 | 72.70 | 72.70 |
| Seat angle (°) | 75.50 | 74.50 | 74 | 74 | 73.50 | 73.50 | 73 | 73 |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 | 420 | 423 | 423 |
| Wheelbase (mm) | 994 | 1,000 | 1,001 | 1,005 | 1,012 | 1,029 | 1,042 | 1,062 |
| Fork offset (mm) | 52 | 52 | 47 | 47 | 44 | 44 | 41 | 41 |
Frame Details
Frame Weight
This frame weighs 950g
Frame Material
Carbon Fiber
Forks
FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 Di2 R7170, braze-on
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 R7170, hydraulic disc
Front Derailleur
Shimano 105 Di2 R7150
Rear Derailleur
Shimano 105 Di2 R7150, 12-speed
Cassette
Shimano 105 R7100, 12-speed.
Cranks
Shimano 105 R7100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano Threaded BSA BB
Chain
Shimano SLX/105 M7100, 12-speed with Quick-Link.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Front: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples, Rear: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Wheel Depth
25mm
Rear Wheel Depth
25mm
Tires
Front: S-Works Mondo 2BR, 700x32c, Rear: S-Works Mondo 2BR, 700x32c
Tire Type
Tubeless
Max Tire Size: 40 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105
Brake Rotors
160mm front and 160mm rear Shimano Center Lock rotors
Other Components
Saddle
Body Geometry Power Sport, steel rails
Seatpost
S-Works PaveType: Rigid

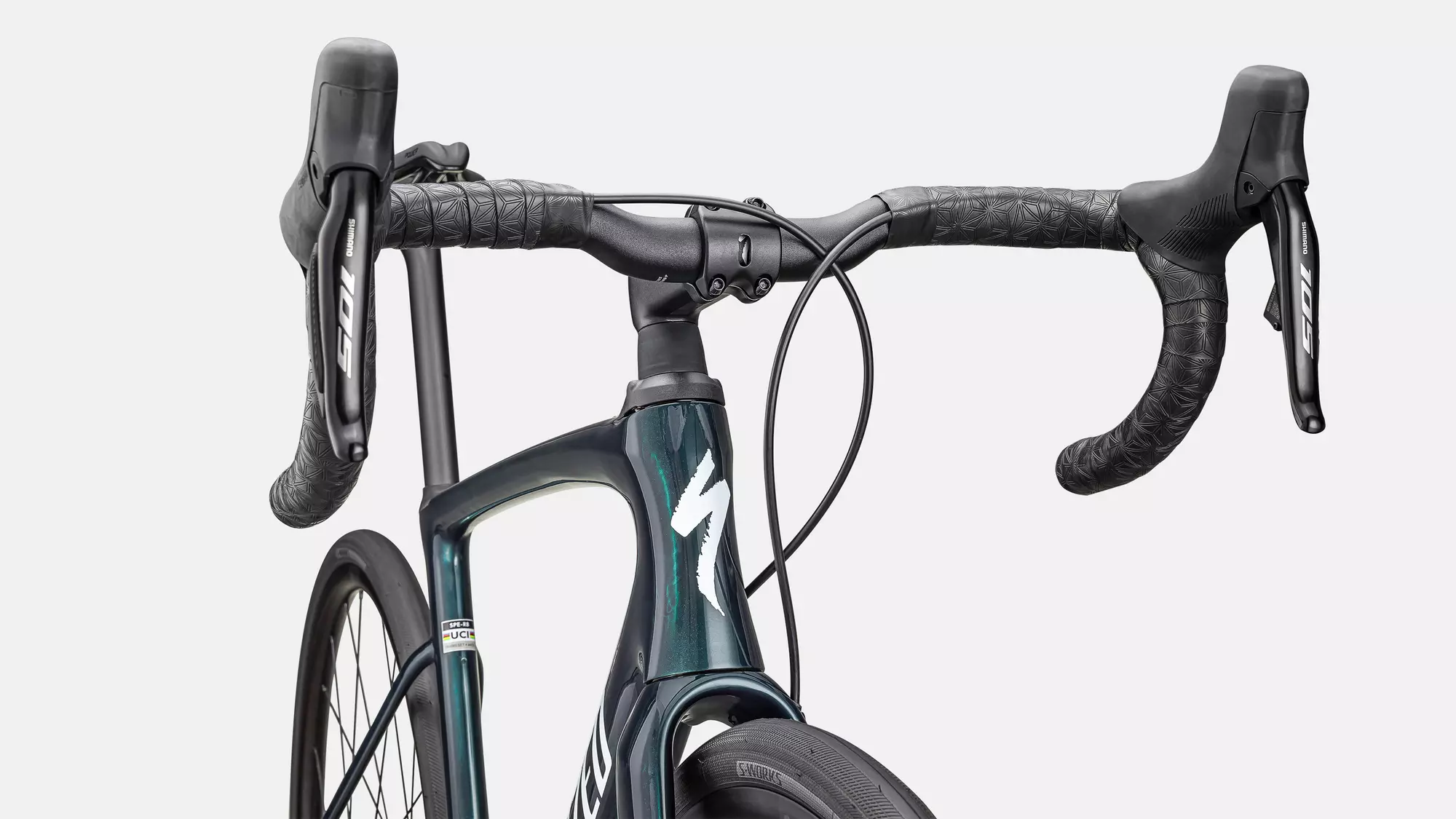

Handlebars
Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
Bar Tape
Supacaz Super Sticky Kush
