Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
SRAM Force AXS
Wheelset
Giant SLR 0 40 Carbon
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 33 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| Effective top tube (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | 680 | 710 | 740 | 770 | 800 | 830 |
| Head tube (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| Standover (mm) | 703 | 722 | 743 | 771 | 798 | 822 |
| Handling | ||||||
| Head angle (°) | 71 | 72.30 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 976 | 977 | 980 | 991 | 1,006 | 1,020 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Trail (mm) | 72 | 64 | 59 | 59 | 59 | 59 |
Frame Details
Frame Weight
This frame weighs 690g
Frame Material
Carbon Fiber
Forks
Advanced SL-Grade Composite, 12x142mm thru-axle, Integrated Seatpost, Disc
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

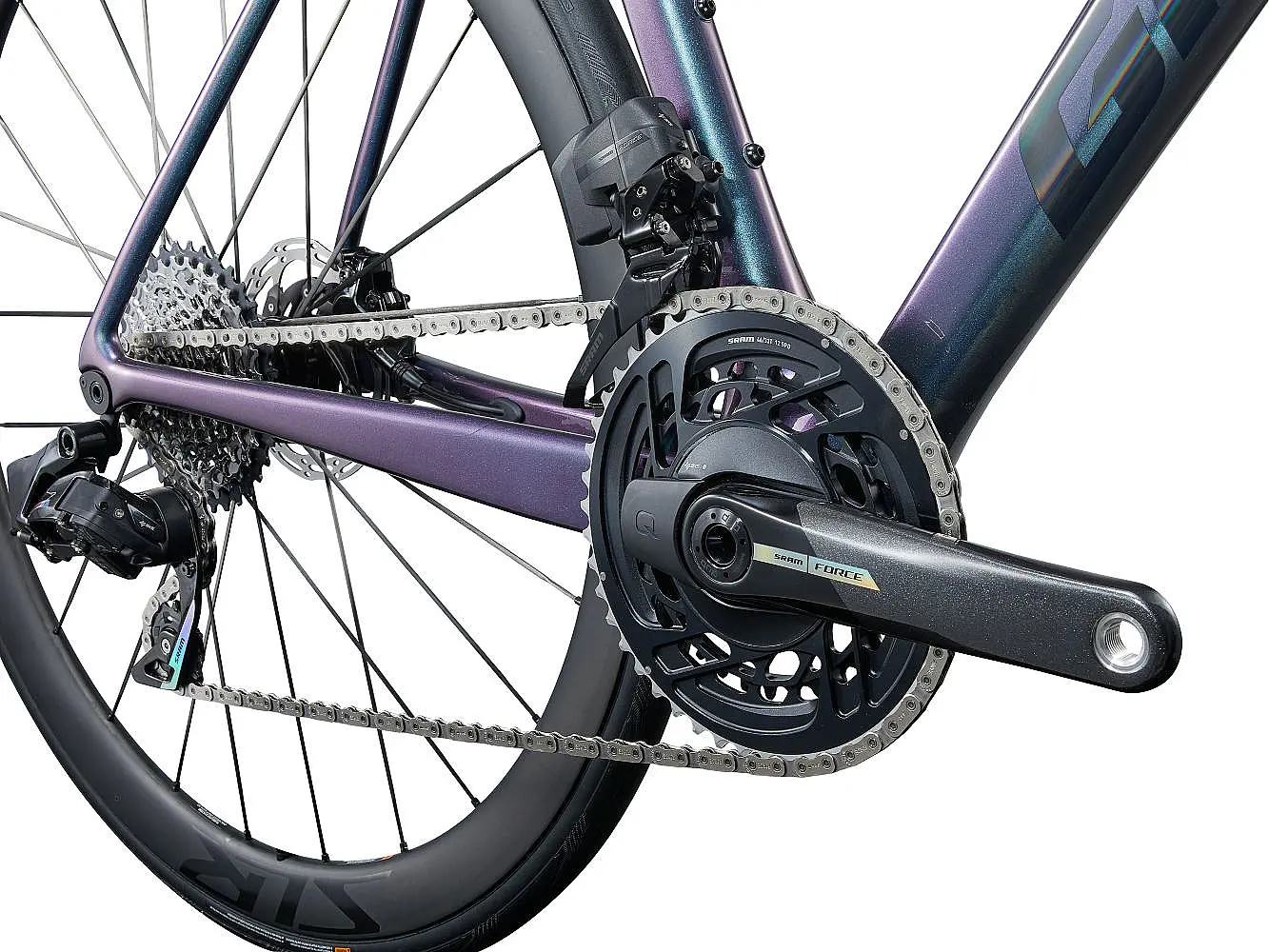

Drivechain Details
Groupset name
SRAM Force AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS 2x12
Front Derailleur
SRAM Force AXS, braze-on type.
Rear Derailleur
SRAM Force AXS
Cassette
SRAM Force XG-1270, 12-speed.
Cranks
SRAM Force DUB with Quarq Power Meter
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB, Press Fit
Chain
SRAM Force, 12-speed Flattop chain (Inferred from groupset family).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
New Giant SLR 0 40 Carbon Disc Wheel System with GIANT patented DBL (Dynamic Balanced Lacing) technology
Front Wheel Depth
40mm
Rear Wheel Depth
40mm
Tires
New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding
Tire Type
Tubeless
Max Tire Size: 33 mm
This is the max tire size you can use

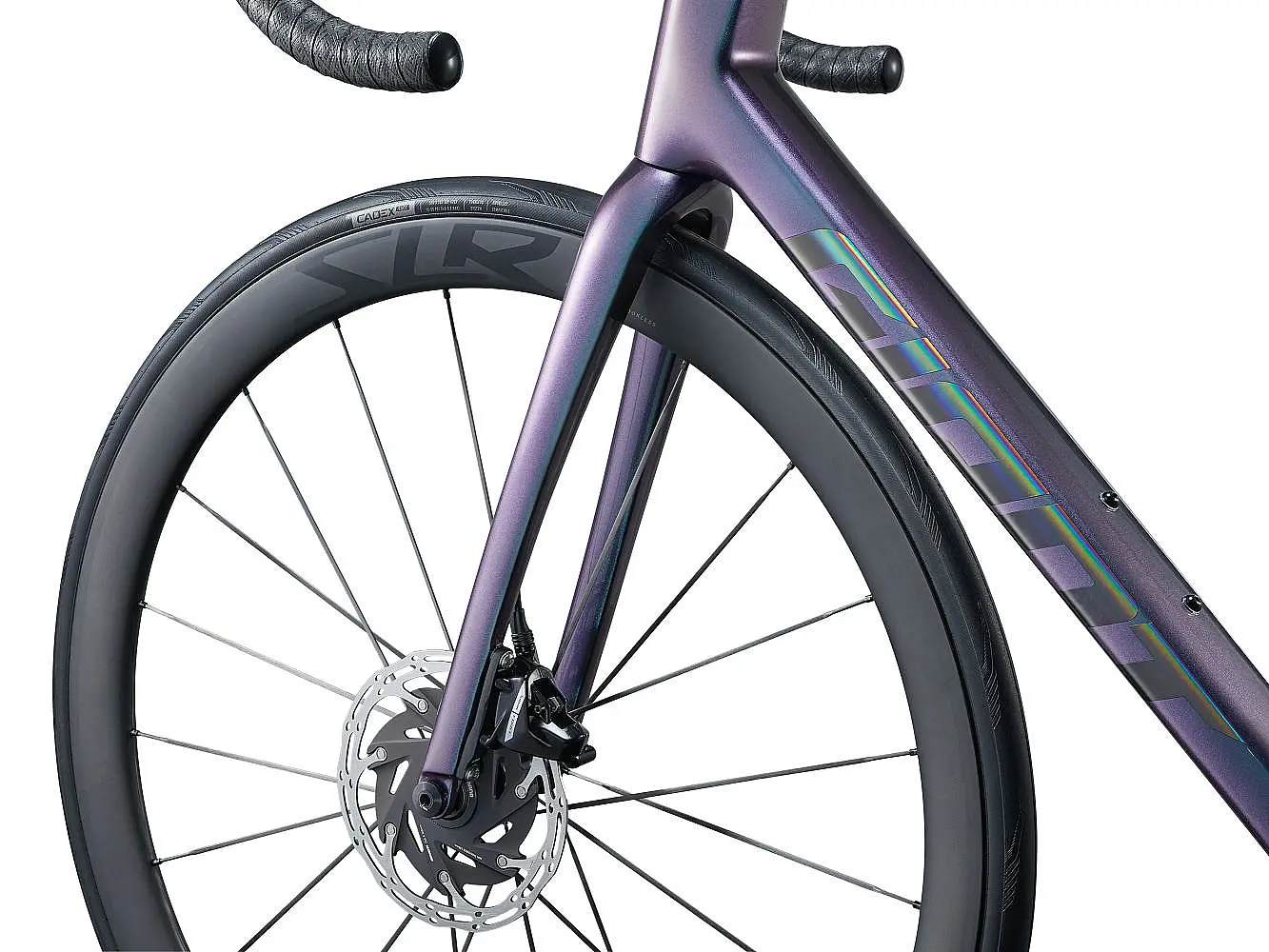

Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force AXS HRD, Centreline XR 160/140mm rotors
Brake Rotors
160mm front rotor / 140mm rear rotor layout. It utilises premium SRAM Centerline XR CenterLock brake discs
Other Components
Saddle
Giant Fleet SLR 9mm Carbon Rail With Giant ParticleFlow technology
Seatpost
Advanced SL-Grade Composite, Integrated Design, ISP Clamps: Standard (25mm) and Long version (45mm) Offset -5/+15mmType: Rigid
Handlebars
Giant Contact SLR, 10.5 degree flare
Bar Tape
Giant Stratus Lite 2.0 with gel
